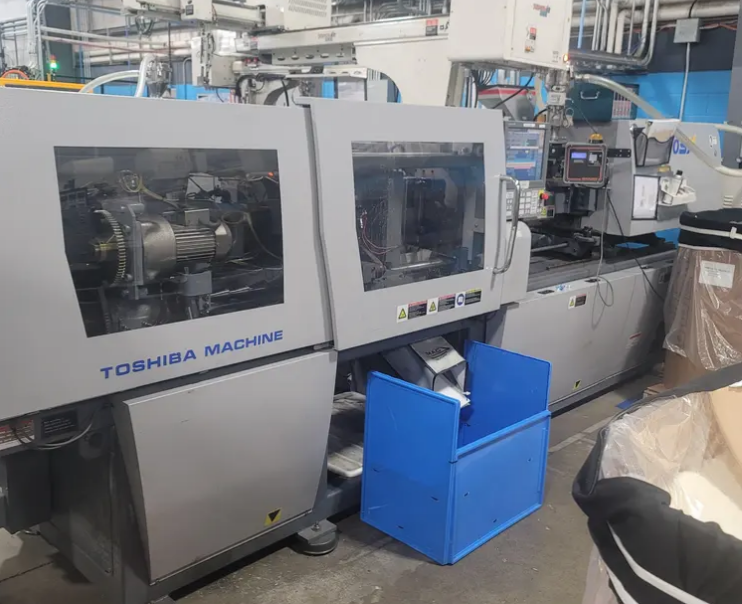

Toshiba EC110SXV50-U34-4Y 110 T

Type All Electric
Clamping Force Tonnage 110 T
Barrel Code 4Y
Shot Volume (PS) 5.3 oz
Shot Volume (PE) 4.2 oz
Screw Diameter 1.42"
Maximum Injection Pressure 35800 psi
Maximum Holding Pressure 35800 psi
Screw Speed STD 350 RPM
Plasticizing Capacity (PS) High Torque 0.8 oz
Nozzle Touch Force 1.3 T
Tie Bar Distance H 18.1"
Tie Bar Distance V 16.1"
Platen Dimension H 26"
Platen Dimension V 24"
Clamp Stroke 13.8"
Maximum Daylight 35.4"
Mold Height Min 7.1"
Mold Height Max 21.7"
Ejector Force 3.3 T
Ejector Stroke 3.5"
Heater Capacity 11.2 kW
Injection Orientation Horz
Hours 33 hr.
Control CNC (InjectvisorV50)
Dimensions 16.1 x 4.3 x 5.6
Weight 9400

Includes all standard features plus these non-standard options:
- Hydraulic Core-Pull Power Unit 7GPM @ 1,000psi
- Transformer for 460V
- Anti-wear single flight screw & Tungsten Carbide Barrel
