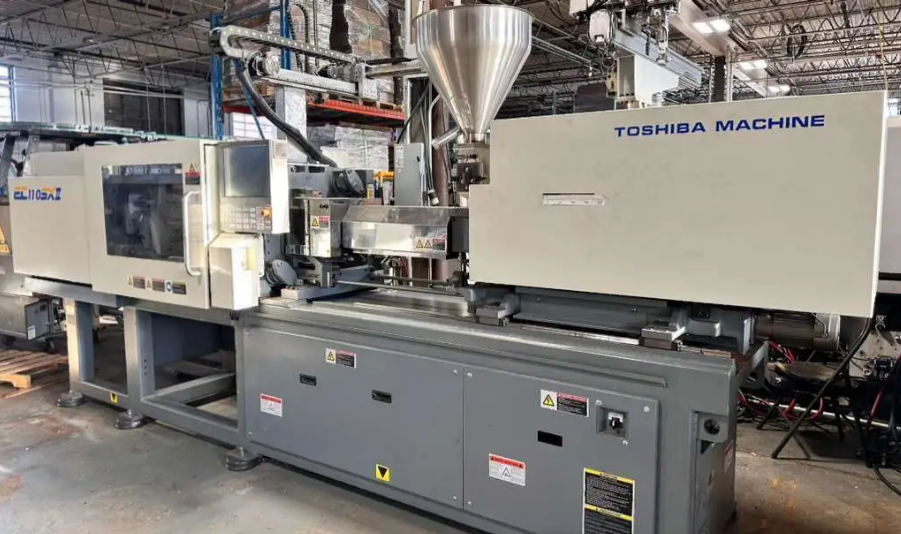

Toshiba EC110SXIIV50-4B 110 T

Clamping Force Tonnage 110 T
Barrel Code 4B
Screw Diameter 1.77"
Maximum Injection Pressure 22900 psi
Maximum Holding Pressure 22900 psi
Screw Speed STD 285 rpm
Screw Torque STD 761
Plasticizing Capacity (PS) STD 1.2 oz
Nozzle Touch Force 2 T
Tie Bar Distance H 18.1"
Tie Bar Distance V 16.1"
Platen Dimension H 26"
Platen Dimension V 24"
Clamp Stroke 13.8"
Maximum Daylight 35.4"
Mold Height Min 7.1"
Mold Height Max 21.7"
Ejector Force 3.3 T
Ejector Stroke 3.54"
Main Breaker Electric Capacity 45
Heater Capacity 11.9 kw
Injection Orientation Horz
Control CNC (InjectvisorV50)
Dimensions 16.1 x 4.2 x 5.4 Feet
