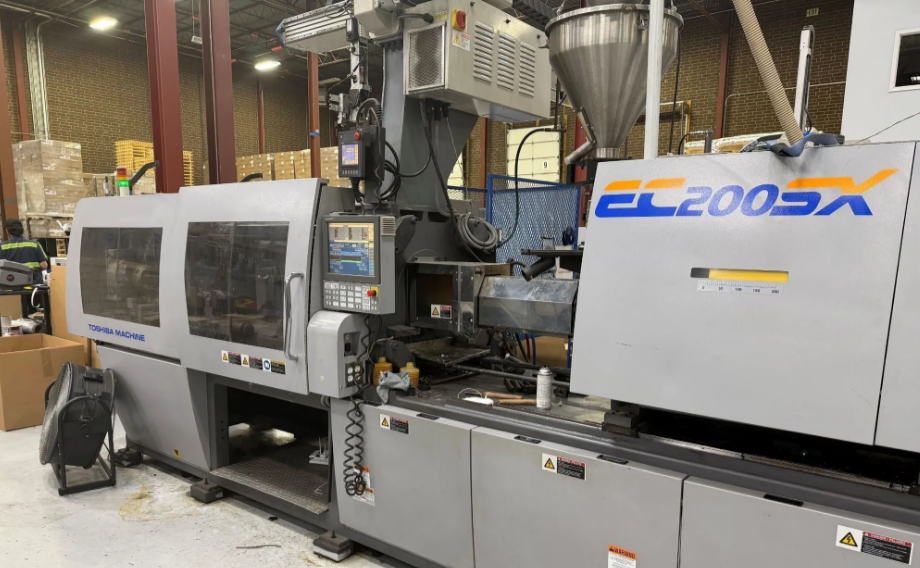

Toshiba EC200SXV50-4 200 T

Grip Capacity: 200 Tons (198.4 US Tons).
Tie Bar Clearance: 560 mm x 510 mm.
Platen Size: 790 mm x 740 mm.
Clamp Stroke: 450 mm.
Maximum Distance Between Plates: 1050 mm.
Mold Thickness (Min - Max): 200 mm to 600 mm.
Ejector Thrust Force: 5 Tons (tf).
Ejector Stroke Length: 130 mm.

Computer Control Features (INJECTVISOR V50)
This intelligent control system incorporates the following technologies:
Display: TFT color touchscreen monitor.
Operating System: Based on industrial Windows PC architecture.
iPAQET Lite: Production data monitoring software.
Customization: Programmable output signals for up to 40 lines.
DST-PRESS: Automatic adjustment of dynamic chuck force.
DST-FILL: Automatic adjustment of injection pressure stabilization.

Machine Operational Advantages
Highly Energy Efficient: Drastically reduces electricity consumption.
Hydraulic Oil-Free: Eliminates the risk of contamination of plastic products.
Fast Printing Cycle: Using a linkline toggle hinge mechanism.
High Accuracy: Screw positioning accuracy is controlled by a servo motor.
