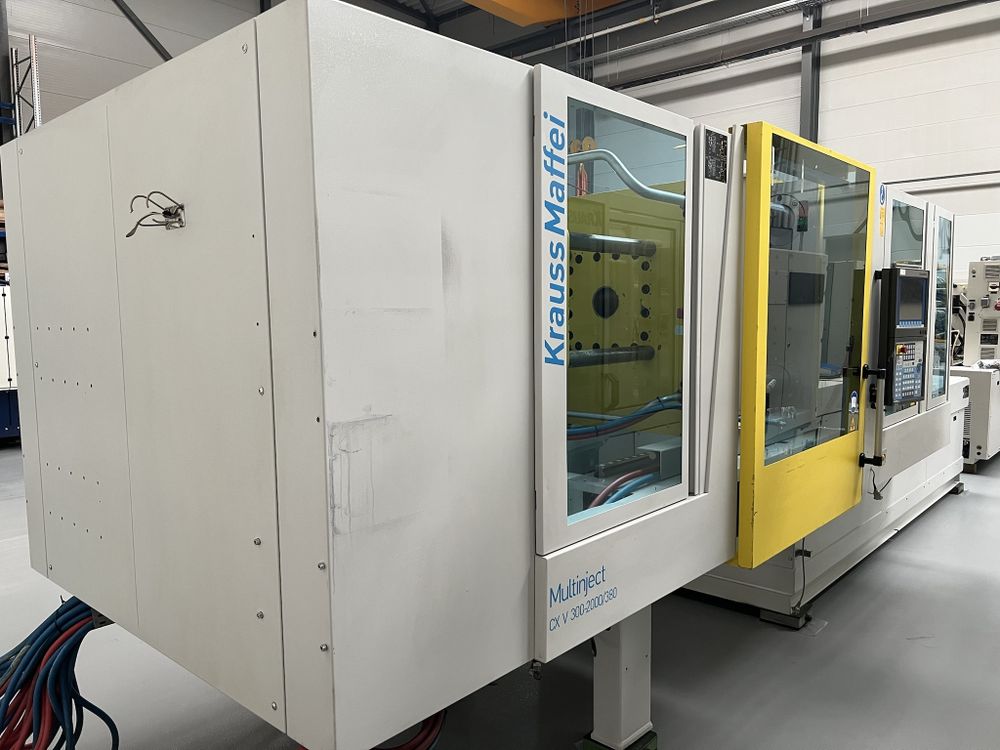

Krauss Maffei KM 300 - 2000 CX 300 T

Controlversion MC 5
Screentext German

Clamping unit:
Clamping force 3000 kN
Mould opening force, max. 169,3 kN
Travel force movable platen opening 86 kN
Travel force movable platen closing 67 kN
Size of mould platens (h x v ) 1075 x 1055 mm
Distance between tie bars (h x v) 710 x 630 mm
Mould opening stroke 820 mm
Mould height min 480 mm
Max. daylight 1300 mm
Hydraulic ejector - stroke 200 mm
Ejector force 58 / 28 kN

Injection unit:
Screw diameter 70 mm
Ls/D ratio 20
Injection pressure 1877 bar
Stroke volume 1078 ccm
Shot weight (PS) 981 gr.
Injection rate 577 ccm/s
Screw speed 220 1/min
Plasticising rate max. 75,8 g/s
Nozzle pressure 82 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 45 kW
Installed heating capacity 36 kW
Adjustable barrel heating zones 7
Reservoir capacity 720 ltr.

Dimensions and weights:
Dimensions of the machine ca. 7,00 x 2,30 x 2,50 m
Total machine weight 16600 kg
Max. mould weight 3430 kg

Accessories:
- Anti vibration pads
- Anti vibration pads
- Conveyor
- integrated Krauss Maffei Robot LRX150
X: 900 mm
Y: 1400 mm
Z: 3000 mm
C: 90°

Additional Options:
- 2 x hydr. core pull on movable plate
- 2 x hydr. core pull on fix plate
- 16 x hotrunner controller
