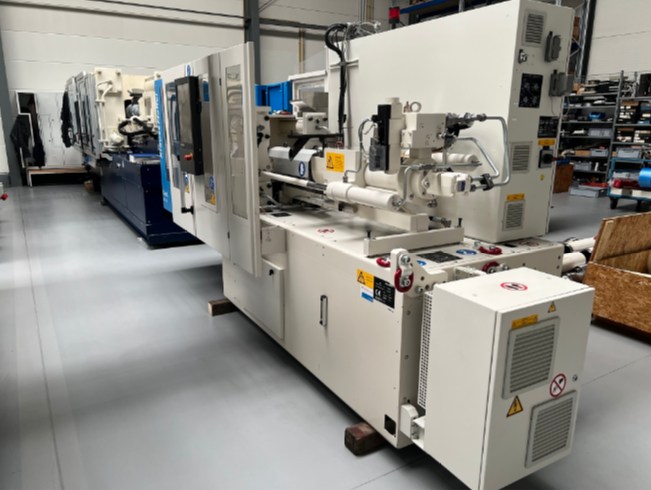

Krauss Maffei KM 50 – 180 CX 50 T

Working hours 32000 h
Controlversion MC 6
Screentext German

Clamping unit:
Clamping force 500 kN
Mould opening force, max. 39 kN
Travel force movable platen opening 22 kN
Travel force movable platen closing 17 kN
Size of mould platens (h x v) 600 x 600 mm
Distance between tie bars (h x v) 370 x 370 mm
Mould opening stroke 400 mm
Mould height min 200 mm
Max. daylight 600 mm
Hydraulic ejector - stroke 100 mm
Ejector force 22 kN

Injection unit:
Screw diameter 25 mm
Ls/D ratio 26
Injection pressure 2500 bar
Stroke volume 59 ccm
Shot weight (PS) 54 gr.
Injection rate 59 ccm/s
Screw speed 365 1/min
Plasticising rate max. 8,5 g/s
Nozzle pressure 50 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 11 kW
Installed heating capacity 8 kW
Adjustable barrel heating zones 5
Reservoir capacity 180 ltr.

Dimensions and weights:
Dimensions of the machine ca. 3,50 x 1,40 x 2,00 m
Total machine weight 3000 kg

Accessories:
- Anti vibration pads
- 6-zones water distributer
- Krauss Maffei Robot SPX10

Additional Options:
- 1 x hydr. core pull on movable plate
- 1 x airvalve
- 6 x hotrunner controller
- Robot interface according to Euromap 67
