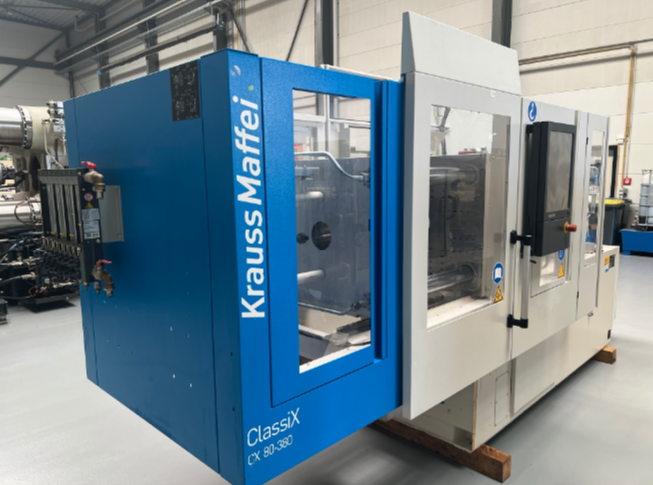

Krauss Maffei KM 80 - 380 CX 80 T

Working hours 34000 h
Controlversion MC 6
Screentext German

Clamping unit:
Clamping force 800 kN
Mould opening force, max. 55,3 kN
Travel force movable platen opening 31,1 kN
Travel force movable platen closing 22 kN
Size of mould platens (h x v) 720 x 670 mm
Distance between tie bars (h x v) 470 x 420 mm
Mould opening stroke 500 mm
Mould height min 250 mm
Max. daylight 750 mm
Hydraulic ejector - stroke 150 mm
Ejector force 23 kN

Injection unit:
Screw diameter 40 mm
Ls/D ratio 20
Injection pressure 1860 bar
Stroke volume 201 ccm
Shot weight (PS) 182,9 gr.
Injection rate 126 ccm/s
Screw speed 295 1/min
Plasticising rate max. 26 g/s
Nozzle pressure 50 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 15 kW
Installed heating capacity 11 kW
Adjustable barrel heating zones 5
Oil Reservoir capacity 400 ltr.

Dimensions and weights:
Dimensions of the machine ca. 4,50 x 2,00 x 2,20 m
Total machine weight 3900 kg
Max. mould weight 995 kg

Accessories:
- Anti vibration pads
- Anti vibration pads
- 8-fold water distributer
- BluePower
- Krauss Maffei Robot SPX10

Additional Options:
- 1 x Air valve
- 1 x hydr. core pull
- Robot interface according to Euromap 67
- 8 x hot runner controller
