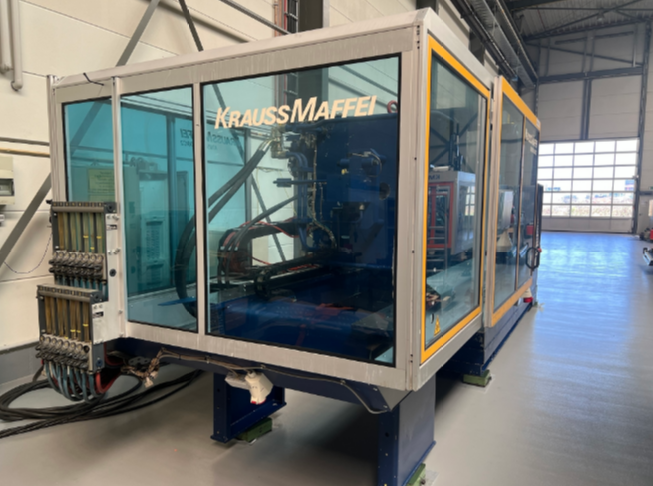

Krauss Maffei KM 500 - 3500 C2 500 T

Working hours 77910
Controlversion MC 4
Screentext German

Clamping unit:
Clamping force 5000 kN
Mould opening force, max. 280 kN
Travel force movable platen opening 137 kN
Travel force movable platen closing 136 kN
Size of mould platens (h x v) 1270 x 1200 mm
Distance between tie bars (h x v) 900 x 800 mm
Mould opening stroke 1170 mm
Mould height min 480 mm
Max. daylight 1650 mm
Hydraulic ejector - stroke 250 mm
Ejector force 95/48 kN

Injection unit:
Screw diameter 100 mm
Ls/D ratio 18
Injection pressure 1411 bar
Stroke volume 2411 ccm
Shot weight (PS) 2194 gr.
Injection rate 801 ccm/s
Screw speed 189 1/min
Plasticising rate max. 161 g/s
Nozzle pressure 173 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 90 kW
Installed heating capacity 44 kW
Adjustable barrel heating zones 7
Oil Reservoir capacity 1075 ltr.

Dimensions and weights:
Dimensions of the machine ca. 7,50 x 2,50 x 2,50 m
Total machine weight 27090 kg
Max. mould weight 7900 kg

Accessories:
- Anti vibration pads
- 2 x 8 fold water flow regulator

Additional Options:
- 2 x hydr. core pull on movable plate
- 2 x hydr. core pull on fix plate
- Robot interface according to Euromap 12
- 16 x hotrunner controller
- 1 x air valve on movable plate

This second hand injection moulding machine Krauss Maffei KM 500 - 3500 C2 is
tested and in working condition
