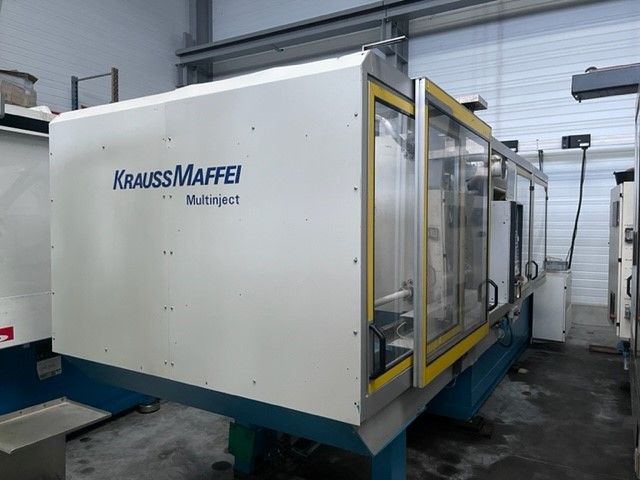

Krauss Maffei KM350/1900-520 CZ 350 T

Number of hours: 75000h

Closing unit
Closing force: 350T
Passage between columns: 710 x 710 mm
Dimensions of the Trays: 1060 x 1095mm
Opening race: 710 x 710 mm
Minimum-maximum mold thickness: 380-1300mm
Distance between platforms: 1300mm
Ejection stroke: 250mm

Injection unit
Screw diameter: 70 - 45 mm
Injection pressure: 1778 - 1878 bar
Injectable volume: 1047 - 275 cm3
Injectable weight: 953 - 250 gr

Others
Control command: mc4
Mold heating zone: 12
Number of nuclei: 4
Robot interface: Yes
Air blowers: 2
Dimensions (L x W x H): 6500 x 2040 x 2600mm
Weight : 17500kg

Nozzle center distance: 300 mm
