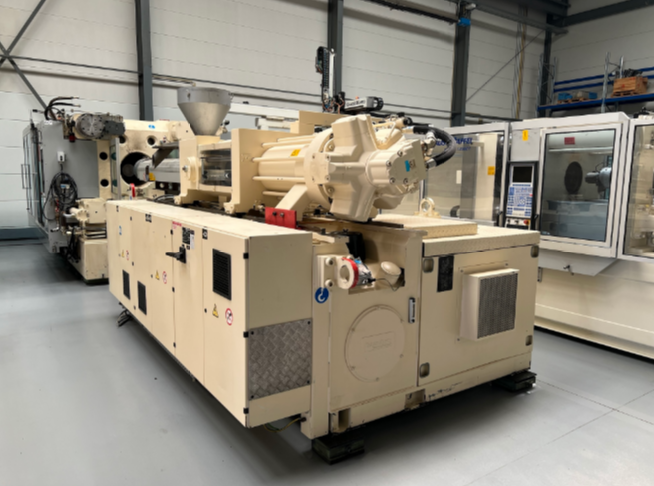

Krauss Maffei KM 800 – 6100 MX 800 T

Operating hours 30000 h
Control type MC 5
screen text German English

Locking unit:
Closing force 8000 kN
Tool opening force, max. 560 kN
Driving force movable plate open 89 kN
Driving force moving plate close 92 kN
Mounting plate (hxv) 1600 x 1550 mm
Clear width (hxv) 1120 x 1000 mm
Tool opening path 1600 mm
Tool installation height min./max. 500 / 1100 mm
Opening width: 2100 mm
Ejector stroke 300 mm
Ejector force forward/backward 200/100 kN

Injection unit:
screw diameter 95 mm
Ls/D ratio 23
Injection pressure 1795 bear
Displacement volume 3367 cc
Shot weight (HP) 3064 gr.
Injection flow 690 cc/s
worm speed 116 1/min
Plasticizing current 104 g/s
Nozzle system force 166kN

Electrohydraulic equipment:
Rated power of pump motor 90 kW
Installed heating capacity 53 kW
Control zones cylinder heating 7
Oil filling 1500 ltr.

Dimensions and weights:
Space required approx. 11.00 x 3.00 x 2.60 m
Total weight 44500 kg
Max. tool weight 12200 kg

Accesories:
- Vibration elements

Additional equipment:
- 1 x air valve
- Stem pulling device
- 3 x hydraulic core pull on BWAP
- 2 x hydraulic core pull on FWAP
- 20 x hot runner control points
- Robot interface according to Euromap 67

The used Krauss Maffei KM 800 – 6100 MX injection molding machine has been function-tested and is in perfect working order and ready for production.
This Krauss Maffei KM 800 – 6100 MX injection molding machine can be viewed at any time by prior appointment.
