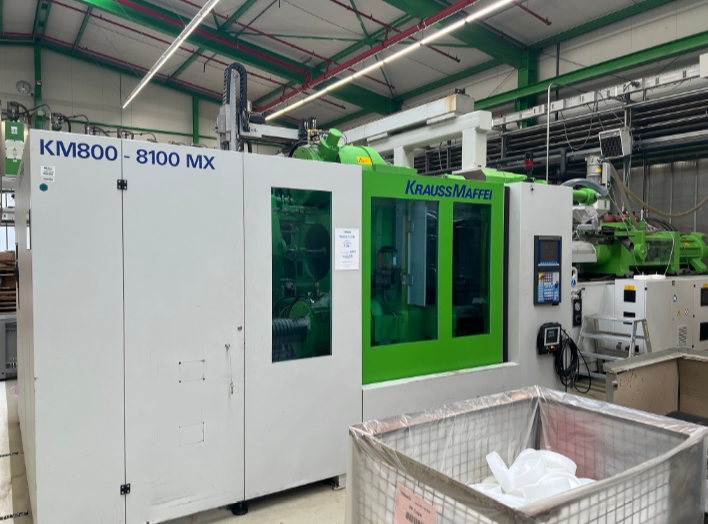

Krauss Maffei KM 800 – 8100 MX 800 T

Working hours 70000 h
Controlversion MC 5
Screentext German

Clamping unit:
Clamping force 8000 kN
Mould opening force, max. 560 kN
Travel force movable platen opening 153 kN
Travel force movable platen closing 117 kN
Size of mould platens (h x v) 1600 x 1550 mm
Distance between tie bars (h x v) 1120 x 1000 mm
Mould opening stroke 1600 mm
Mould height min/max 500/1100 mm
Max. daylight 2100 mm
Hydraulic ejector - stroke 300 mm
Ejector force 200/100 kN

Injection unit:
Screw diameter 105 mm
Ls/D ratio 23
Injection pressure 1778 bar
Stroke volume 4546 ccm
Shot weight (PS) 4137 gr.
Injection rate 805 ccm/s
Screw speed 121 1/min
Plasticising rate max. 144 g/s
Nozzle pressure 166 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 110 kW
Installed heating capacity 57 kW
Adjustable barrel heating zones 7
Oil Reservoir capacity 1500 ltr.

Dimensions and weights:
Dimensions of the machine ca. 11,00 x 3,00 x 2,60 m
Total machine weight 45000 kg
Max. mould weight 12200 kg

Accessories:
- Anti vibration pads
- 8-fold water distributer
- Krauss Maffei Robot LR300
X: 1200 mm, Servo
Y: 1000/1000 mm, Servo
Z: 3500 mm, Servo
C: 0-90°, pneumatic

Additional Options:
- 1 x air valve
- 2 x core pulls on movable plate
- Accumulator
- 8 x hot runner controller
- Robot interface according to Euromap 67

This second hand injection moulding machine Krauss Maffei KM 800 – 8100 MX is tested and in working condition
