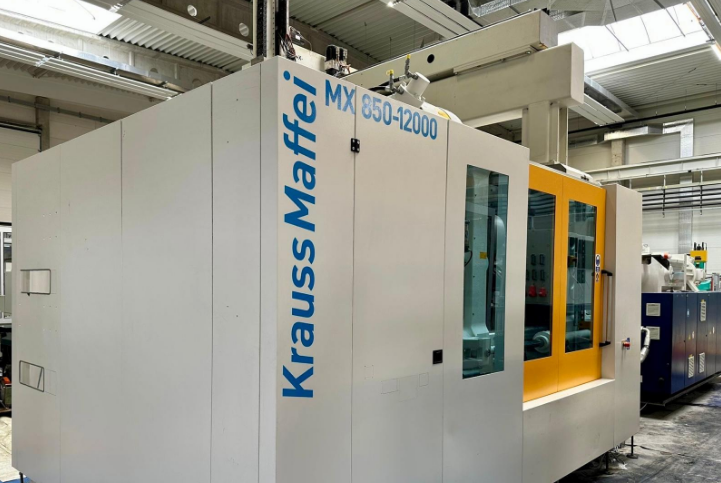

Krauss Maffei KM 850-12000 MX 850 T

Krauss Maffei LRX 500 Robot
Year of Manufacture: 2011

Machine Description:
Hydraulic-mechanical two-platen clamping system with 4 pressure pads
and 4 locking units on the moving platen.
PV-controlled injection unit.
MC 5 control system with color monitor, integrated control panel,
and USB data storage.

Plasticizing Unit:
Complete plasticizing system for thermoplastics with
a 135 mm diameter screw, shut-off nozzle, and open nozzle.
Nozzle radius: 25 mm, nozzle opening: 9 mm

Technical Specifications:
Clamping Unit:
Clamping force: 8,500 kN
Mold opening force: 560 kN
Platen size (H x V): 1600 x 1600 mm
Tie bar spacing (H x V): 1140 x 1140 mm
Mold opening stroke: 1600 mm
Mold height (min–max): 500 – 1100 mm
Daylight opening: 2100 mm
Ejector stroke: 300 mm
Ejector force: 200 / 100 kN

Injection Unit:
Screw diameter: 135 mm
Injection pressure: 1389 bar
Injection volume: 8588 cm³
Shot weight (PS): 6098 g
Injection rate: 1414 cm³/s

Electro-Hydraulic Equipment:
Pump motor power: 132 kW
Dry cycle time (Euromap 6): 965 cycles/h
Oil tank capacity: 2440 l

Dimensions and Weight:
Net weight with control cabinet: 49 t
Footprint (L x W x H): 11.72 x 2.92 x 2.71 m
