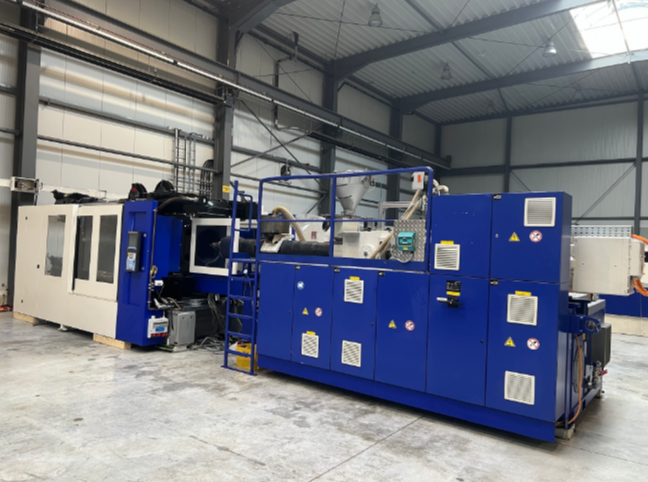

Krauss Maffei KM 850 - 6100 MX 850 T

Working hours 25000 h
Controlversion MC 5
Screentext German

Clamping unit:
Clamping force 8500 kN
Mould opening force, max. 560 kN
Travel force movable platen opening 89 kN
Travel force movable platen closing 92 kN
Size of mould platens (h x v) 1600 x 1600 mm
Distance between tie bars (h x v) 1140 x 1140 mm
Mould opening stroke 1600 mm
Mould height min/max 500/1100 mm
Max. daylight 2100 mm
Hydraulic ejector - stroke 300 mm
Ejector force 200/100 kN

Injection unit:
Screw diameter 95 mm
Ls/D ratio 23
Injection pressure 1795 bar
Stroke volume 3367 ccm
Shot weight (PS) 3064 gr.
Injection rate 690 ccm/s
Screw speed 116 1/min
Plasticising rate max 104 g/s
Nozzle pressure 166 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 90 kW
Installed heating capacity 53 kW
Adjustable barrel heating zones 7
Oil Reservoir capacity 1500 ltr.

Dimensions and weights:
Dimensions of the machine ca. 11,00 x 3,00 x 2,60 m
Total machine weight 43000 kg
Max. mould weight 12200 kg

Accessories:
- Anti vibration pads

Additional Options:
- 1 x Air valve
- 4 x hydr. core pulls
- 12 x hydr. sequentional valves
- 2 x 12 folds water flow regulator
- Robot interface according to Euromap 67
