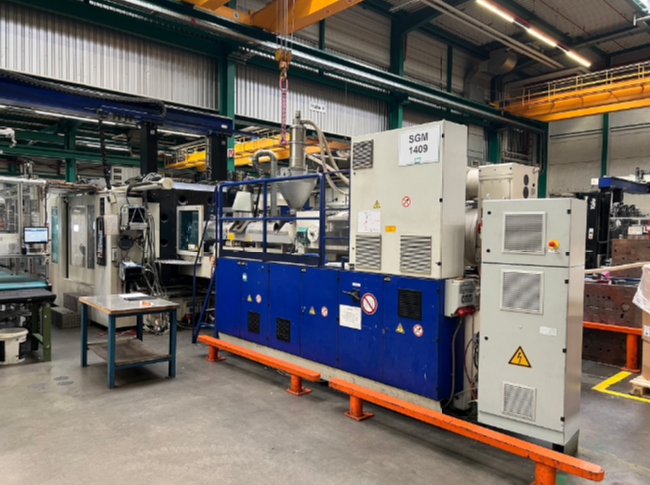

Krauss Maffei KM 950 - 8100 MX 95 T

Operating hours 60000 h
Control type MC 5
screen text German

Locking unit:
Closing force 950 kN
Tool opening force, max. 665 kN
Driving force movable plate open 112 kN
Driving force moving plate close 117 kN
Mounting plate (hxv) 1960 x 1710 mm
Clear width (hxv) 1400 x 1150 mm
Tool opening path 1800 mm
Tool installation height min./max. 600/1200 mm
Opening width: 2400 mm

Injection unit:
screw diameter 105 mm
Ls/D ratio 23
Injection pressure 1778 bear
Displacement volume 4546 cc
Shot weight (hp) 4137 gr.
Injection flow 805 cc/s
worm speed 126 1/min
Plasticizing current 147 g/s
Nozzle system force 166 kN

Electrohydraulic equipment:
Rated power of pump motor 110 kW
Installed heating capacity 59 kW
Control zones cylinder heating 7
Oil filling 1500 ltr.

Dimensions and weights:
Space required approx. 12.00 x 3.50 x 3.00 m
Total weight 67000 kg
Max. tool weight 20300 kg

Accesories:
- Vibration elements
