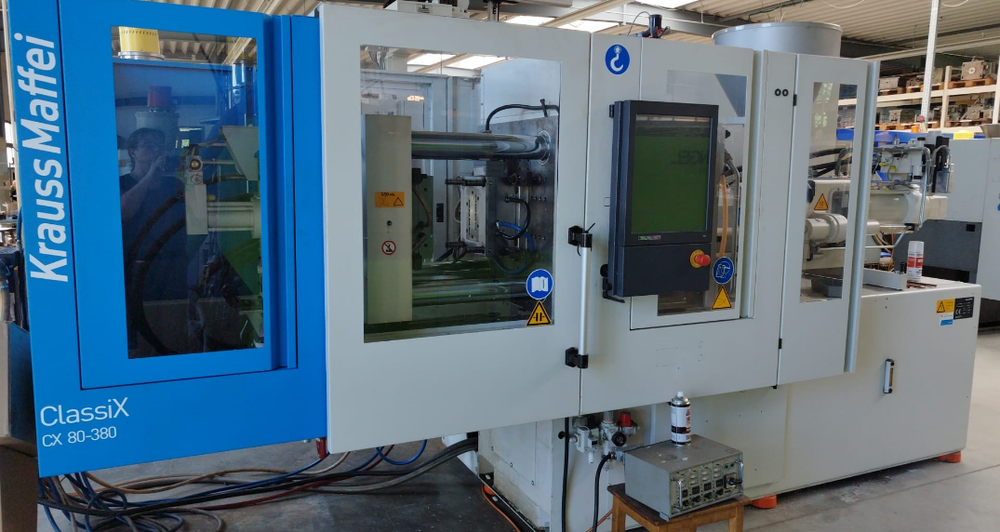

Krauss Maffei KM 80-380 CX 80 T

Control: MC6
Year of manufacture: 2021
Operating hours: 6000 h

Technical data, closing side
Closing force: 800 kN
Timber dimensions h x v: 420 x 420 mm
Plate size h x v: 670 x 670 mm
Minimum installation height: 250 mm
Maximum plate spacing: 750 mm
Opening stroke: 500 mm
Ejector stroke: 150 mm
Ejector force: 43 kN

Technical data, injection side
Screw diameter: 40 mm
Stroke volume: 201 cc
Injection pressure: 1860 bar
Screw length: 20 l/d
Injection flow rate to the atmosphere: 295 g/s PS
Number of heating zones: 5

Dimensions & Weight
Machine dimensions L x W x H: 4.1 m x 1.4 m x 2m
Total weight: 3900kg

Equipment
German screen text
Polish screen text
16A CEE socket
32A CEE socket
1x hydraulic core pull
1x air valve
Machine with water battery
Leveling elements
Highly wear-resistant and corrosion-resistant plasticizing unit
Interface for inking unit
10A Schuko socket
