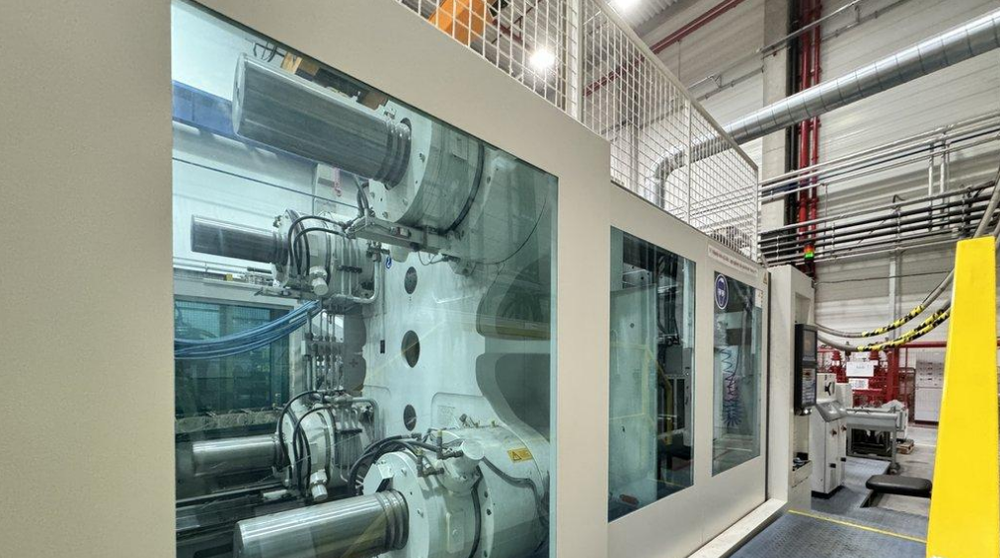

Krauss Maffei KM1300 - 8100 MX 1300 T

Ref : 2792548-6-AW

Condition : Used

Manufacturer : Krauss Maffei

Model : KM1300 - 8100 MX

Capacity : 1300 T

Year(s) : 2016

Quantity : 1

Location : Seller or machines location:
EUROPE (Central and Eastern)

Clamping force: 1300 t
Screw diameter: 105 mm
Distance between tie bars V: 1270 mm
Distance between tie bars H: 1570 mm
Shot volume: 4546 cm3
Type: Horizontal
Drive: Hydraulic

KM1300 - 8100 MX
Year of manufacture 2016
KM1300MX

Clamping force ton: 1300
Tie bar distance: 1570 x 1270 mm
Mould height min/max: 700/1400 mm
Plate dimensions: 2210x1910 mm
Opening stroke : 2350 mm
Max Daylight Opening : 3050 mm
Injection unit Type 8100 MX
Screw diameter: 105 mm
Max. Injection volume: 4546 cm3
Spec. Injection pressure: 1778 bar
Centering ring size: 315 mm
Hydraulic cores: 4 + 4
Number of heating sections: 32 for mould
Number of cooling circuits: 8+8
Electrical cascades : 12
Cooling: 12 + 12
Hydraulic cicrle hot runner: 1x EUROMAP 6
