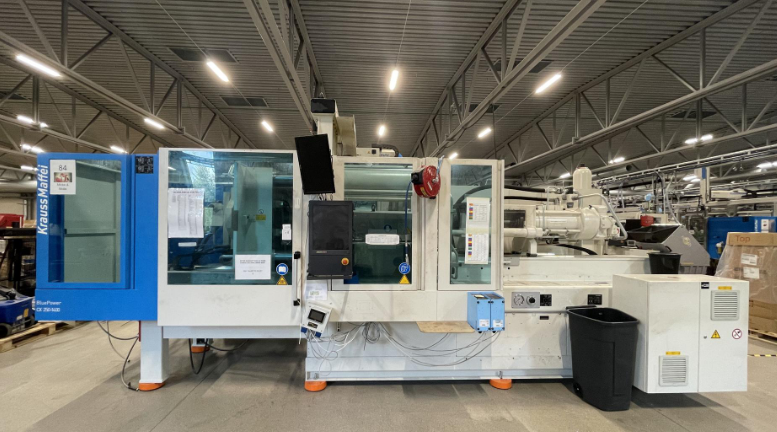

Krauss Maffei KM250-1400CX 250 T

Clamping force: 250 t
Screw diameter: 60 mm
Tie bar distance: 630x630 mm
Show weight: 471 g/PS
Shot volume: 518 cm3
Type: Horizontal
Drive: Hydraulic

Clamping Unit
Clamping force: 2500 KN
Platen size (H × V): 695 × 1050 mm
Tie bar distance: 630 × 630 mm
Opening stroke (max.): 630 mm
Mould height (min. / max.): 320 / 830 mm

Injection Unit
Installed drive power: approx. 87 kW
Screw diameter: 55 / 60 / 70 mm
Injection pressure: 2387 / 2006 / 1473 bar
Injection volume: 417 / 518 / 679 cm³
Shot weight (PS): 379 / 471 / 618 g
Injection stroke: 210 mm
Injection speed (max.): 120 mm/s

Ejector System
Ejector stroke: 180 mm
Ejector force: 78 kN

General Data
Machine dimensions (L × W × H): approx. 6.1 × 2.2 × 2.2 m
Machine weight: approx. 14.0 – 14.3 t
Total connected load: 87 kW
Hydraulic oil capacity: approx. 700 L

Equipment of the machine:
BluePower servo pump drive system (energy-efficient servo-hydraulics)
Hydraulic core pull 1× on operator side + pressure release system
8-fold water battery with magnetic valve shut-off
Hot-runner control 4 zones (ZE 88.5404)
MC6 control with 19″ Touch TFT screen
PV-control for injection speed, hold pressure, back pressure
Event log / quality monitoring / cycle analysis / maintenance reminders
BluePower energy-saving servo drive system

LRX 150 linear robot (payload < 15 kg), incl.:
X = 900 mm / Y = 700 + 700 mm (telescopic) / Z = 2000 mm
B-servo / C-pneumatic rotation axes
Full integration (MC6 control interface)
Safety package – fencing, emergency stop, key switch
Vacuum circuits × 4 (Venturi)
Transport conveyor interface & control circuit
CE conformity declaration for integrated system (IMM + Robot)
Painted RAL 9002 grey-white / Pantone 3005 blue
