Krones Aseptic PET filling line

Krones Aseptic PET filling line
capacity: up to 36.000 bph by 400 - 500 ml PET bottles
up to 18.500 bph by 1,5 ltr. PET bottles
capping: 38 mm flat caps and 38 mm sportscaps

filling products: still beverages like Iced tea & herbal infusions,
Isotonic drinks, sports and energy drinks, juices and nectars,
flavored & vitamin waters, cold brew coffee & coffee-based drinks,
medical & nutraceutical beverages
still water and fruit-infused or mineral-enriched water

turnkey asaptic solution
year of manufacturing: 2004,
maintained by the manufacturer
still in production in Europe until August 2025

consisting of:
1. Preform Tilter VECO Type: RIB2

2. Preform Transport Krones
Additional Information: Includes hopper, transport to
preform orientation infeed, preform recovery conveyor,
dismissed air conveyor (exL5), mobile platform

3. Preform Orienter VZT-4010 Tanner
Additional Information: Includes platform

4. Blowmoulder Contiform S24 Krones

5. Chiller and Cooling System Krones
Additional Information: Moulds not included;
includes pliers, preform grippers, 8 mould trolley, oven hood

6. Air Conveyor
Additional Information: Includes legs/supports up to fixing point,
panel in filler room, and cables to machine cabinet

7. Cap Loading Hopper
Additional Information: Includes transport to cap sorting machine,
2 plastic/steel octabin for carton box loading

8. Injector Krones

9. Chemicals Preparation Equipment Ecolab
Additional Information: Includes chemical measuring equipment;
concentrated chemical pipe to CIP room (outside scope)

10. Rinser: Krones
Additional Information: Cluster valve included

11. Filler Krones
Formats: 400, 500and 1250 ml (guide, star wheel)
Additional Information: Includes cluster valve,
operator panel cabinet; format trolley not included;
includes 2 spare filling valves

12. Inspector Checkmat Krones
Additional Information: Includes linear ejection system

13. Liquid Nitrogen Equipment Krones
Additional Information: Includes dosing and sterilizing system

14. Flat Caps Handling Unit Krones
Additional Information: Includes sorter, sterilizing equipment,
cluster valve

15. Sportcap Handling Unit Krones
Additional Information: Includes bag-in-bag system, sorter,
transfer tunnel, cluster valve, roller conveyors in
freight elevator area (elevator not included)

16.Sterile Clean Room Ventilation Krones

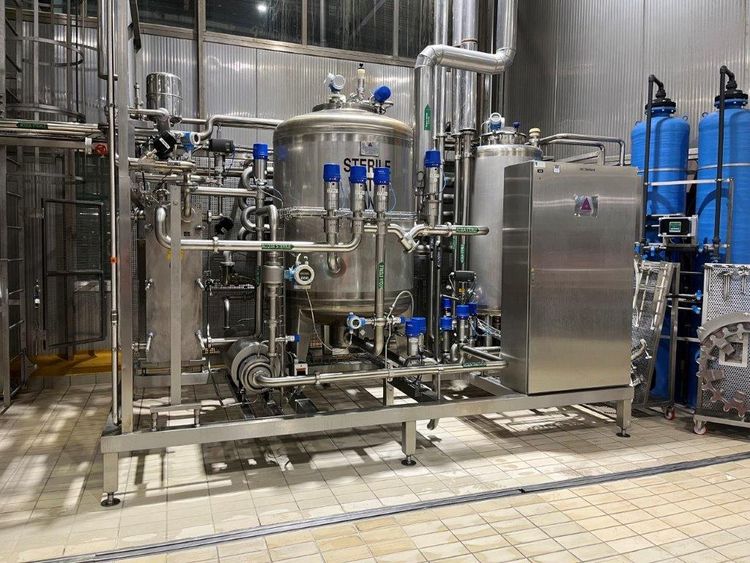

17. Sterile Water System Anlagenbau
Additional Information: Skid-mounted, resin filter included

18. Laser coder Domino
Additional Information: Includes fume extraction system,
HMI operator, system integration with Krones (2 laser coders)

19. Full Bottle Conveyor Krones
Additional Information: Includes conveyor from filler area to sleever,
from sleever to packer, drip trays, and drain to floor

20. Air Dryer Europool
Additional Information: 3 air dryers (2 before sleever, 1 after sleever)
