Krones Filing Line for non-returnable PET-bottles

Used Filing Line for non-returnable PET bottles
make KRONES, Kaeser, Comag, Lachenmeier
capacity 14,000 bottles/h at 0.5l bottle
12,000 bottles/h at 1.5l bottle neck finish PCO 1810
filling product carbonated water, beer and soft drinks with
15°C and 8.0 g/l CO2
packing 3 x 2 (with and without handle)
pallet 4 x ¼ plastic pallet (600 x 400 mm)
2 x half-size pallets (800 x 600 mm)
on Euro pallet (1,200 x 800 mm)
control Uni Siemens S7 300
kind of current TN-S-net, 400 V, 50 Hz

This complete filling line for non-returnable PET bottles was
manufactured in 2004 by Krones. The line is for production of
high-performance beverages and it is in good condition.

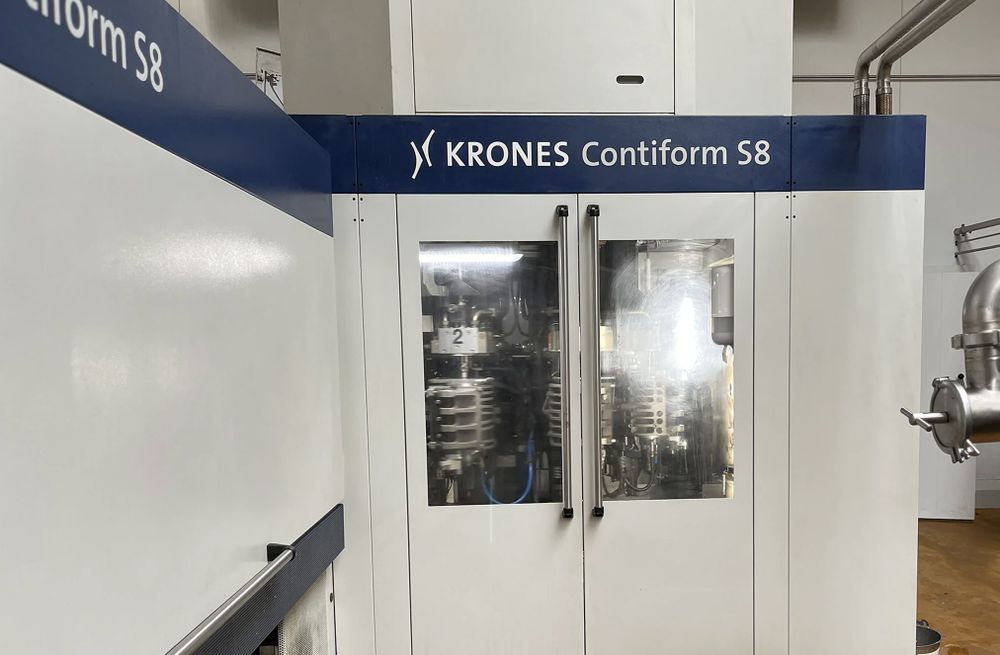

1. Blowmoulder filler block KRONES Contiform S08
Incl. preform tipper Tanner,
Prefromconveyor
Cooling unit KKT Kraus KLC50N
Mecafill VKP-PET 2880-80-113
Neck handling
Automatic butterfly valves Neumo
Plastic screw capper KRONES with 10 heads
Pick & Place
thread spraying system
Incl. cap conveyor system

2. Compressor Kaeser ONLY Booster step

3. Mixer KRONES MSF 24/2
vacuum-assisted deaeration
Brixmeter
CO2 meter
Velcorin Dosing Unit Burdomat II G

3. Bottle Inspection KRONES Checkmat FM-G
Fill height (underfill) and cap control with gamma

4. Labeling Machine KRONES Unimodul 600-15
Contiroll labeling station 2-3-340 for wrap-around label from a
reel with hot melt
2 x cold glue labeling stations 8-8-130 for paper labels

5. Container Inspection KRONES Checkmat E
Label Check existence

6. Code Device Excel 170i UHS

7. Packing Machine KRONES Variopac FS-30
6-lane infeed, 2 lane production (3x2)
Foil only

8. Handle Applicator Comag H 40/2
2 lanes

9. Palletizer KRONES Robot 3A
2-lane infeed
Shutter gripper system
Layer pad inserter 4-sections (for ¼-size pallet)

10. Pallet Safety Lachenmeier Multi Flex1
Stretch shroud applicator

Includes bottle, pack and pallet conveyor according to layout
