Krones ULTRA-CLEAN COMBI-BLOCK

20.000 bph x 50 cl & 18.000 bph x 150 cl – Cap : PCO 28 mm 1881
Filling Section with Combi-block :

Preform feed system with H2O2 disinfection: Tipper, hopper, elevator, chute
Contiform S10 blow-molder + outdoor dry chiller for molds

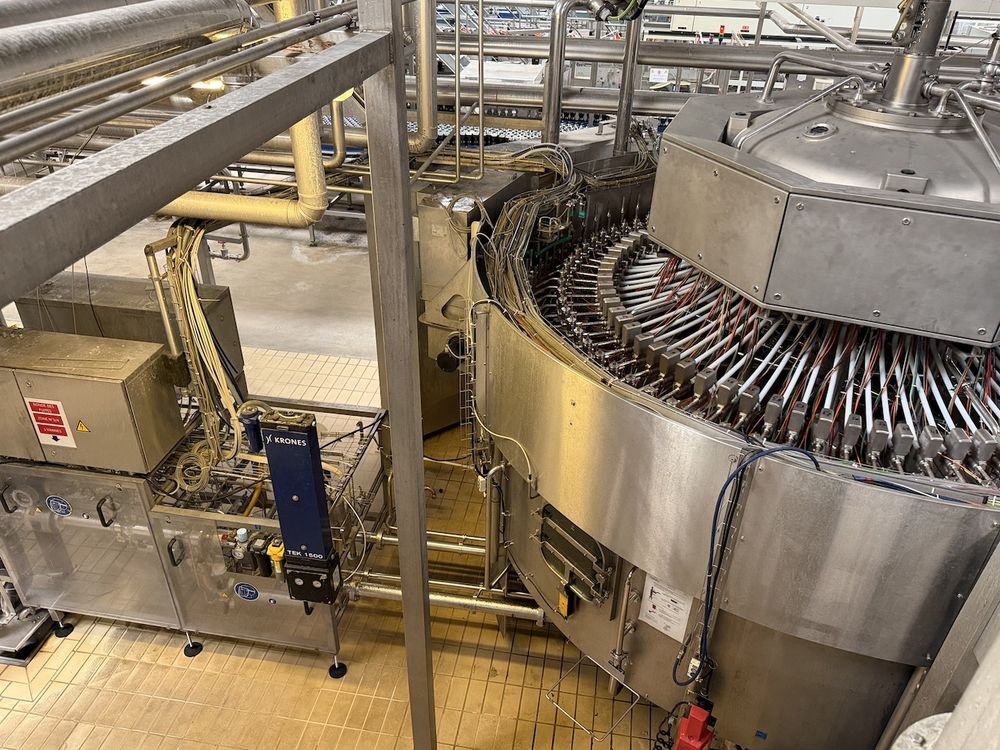

80-valve KRONES filler with 141 mm pitch (max. height : 360 mm – max. diameter: 136 mm)
16-head capper with cap disinfection (PCO 28 mm 1881)
CHECKMAT Full Bottle Inspector : Fill level & cap inspection + ejector
UHT (Ultra-High Temperature) unit for sterile water production for rinsing of the filler

Process Section : 27.000 liters/hour

CIP with 4 tanks KRONES VarioClean : fresh water, hot water, acid, caustic soda
2 finished syrup tanks (2 x 25,000 liters)
1 mixer KRONES type Contiflow : water cooling, deaeration, carbonation, mixing, and transfer to the finished product tank
From the finished product tank, the product goes either directly to the filler or via the flash pasteurizer, which includes an inlet buffer tank and an 800-liter sterile tank
Flash-pasteurizer KRONES type VarioAsept (95°c during 30sec-27.000 Liters/heure, CO2 up to 9 gr/l, PH maxi : 4,2)
32,000 Liters Sterile tank
