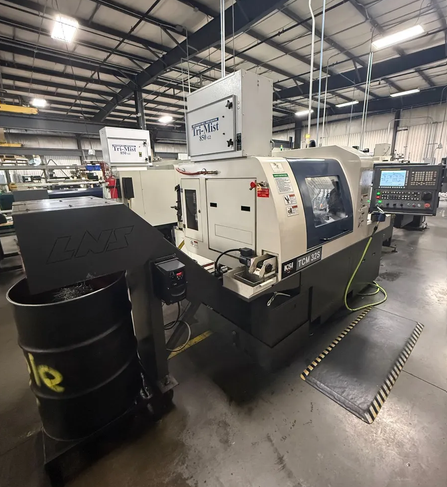

KSI Fanuc CNC 8,000 RPM TCM 32S 7 Axis

Z1-Axis Travel: 300 mm
Z2-Axis Travel: 300 mm
X1-Axis Travel: 70 mm
Y1-Axis Travel: 397.5 mm
X2-Axis Travel: 403 mm
C-Axis Positioning (Main Spindle): 0.001°
C-Axis Positioning (Sub Spindle): 0.001°
Control: Fanuc CNC
7 Axes
Intelligent Chucking
G300 Re-Chuck Optimization
High Precision Mode (M100)
Rapid Tool Change (RTC)
Variable Frequency Turning (VFT)
Software-Controlled Tool Breakage Detection
Tool Life Management System
Collision Prevention System
Automatic Way Lube System
Automatic Power-Off
Parts Counter
LED Signal Light
Work Dual-Zone LED Lighting
Main Coolant Pump Flow Sensor
Driven Rotary Guide Bushing
Sub Spindle Air Blow
Bar Capacity: 32 mm
Maximum Turning Diameter: 32 mm
Main Spindle Bore: 43 mm
Sub Spindle Bore: 32 mm
Main Spindle Speed: 8,000 RPM
Main Spindle Power: 10 HP
Sub Spindle Speed: 8,000 RPM
Sub Spindle Power: 3 HP
Cross/Back Working Spindle Speed: 5,000 RPM
Cross Drill/Mill Motor: 1.5 HP
Back-End Motor: 1.5 HP
Main Spindle Drill/Tap Capacity: 25 mm / M8
Cross Spindle Drill/Tap Capacity: 10 mm / M6
Back Working Drill/Tap Capacity: 10 mm / M8
Tool Stations: 26
Fixed Tools: 17
Live Tools: 9
Main Side Tools: 17
Tool Shank Size: 16 mm
Headstock Collet Size: TF44
Guide Bushing Size: TD32S
Sub Spindle Collet Size: TF37
Ball Screw Diameter: 25 mm
Ball Screw Lead: 10 mm
LNS Vito B-Loader 12' Bar Feeder
MP Systems High Pressure Coolant
Trace Fire Suppression System
Mist Collector
Chip Conveyor
Parts Chute
Parts Conveyor
Sub Spindle Work Ejector
200 L Oil Tank
Dimensions: 2720 x 1500 x 1170 mm
Weight: 3500 kg
Cutting Hours: 1700 h
Run Time: 6700 h
