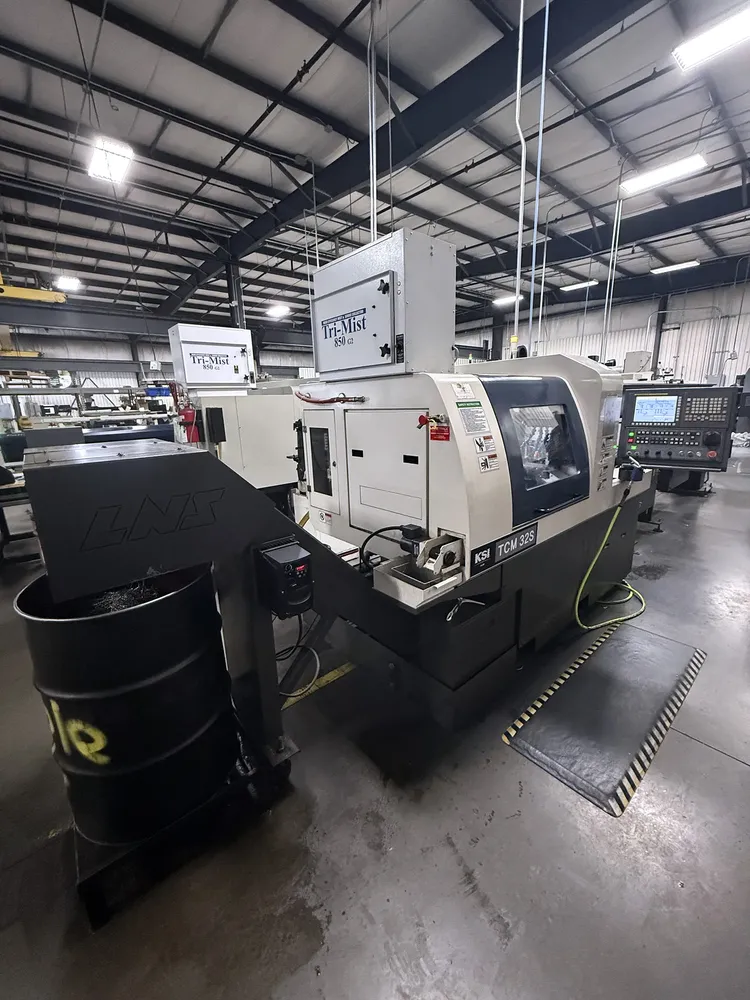

KSI Fanuc Oi-TF 10,000 rpm TCM32 7 Axis

X-axis
Y-axis
Z-axis
C-axis
7-axis configuration
Control: Fanuc Oi-TF
Maximum bar capacity: 32 mm (1.25 in)
Maximum turning length: 305 mm (12.00 in)
Main spindle speed: 10,000 rpm
Main spindle motor: 10 hp
Sub spindle speed: 8,000 rpm
Sub spindle motor: 3 hp
Cross spindle speed: 8,000 rpm
Cross spindle motor: 1.34 hp
Back-end spindle speed: 5,000 rpm
Back-end spindle motor: 1.34 hp
Live tooling
6 turning tools (ER16)
5 Y-axis turning tools (ER16)
Cross drilling: 8 mm (M6, ER16)
200 L coolant tank
Main coolant pump
Sub coolant pump
Chip conveyor
Tri-mist cooling system
LNS Vito 12 ft bar loader
Trace fire suppression system
Run hours: 6,700
Cutting hours: 1,700
Miscellaneous tooling
Machine dimensions: 118 × 57 × 70 in
Weight: 7,716 lb
