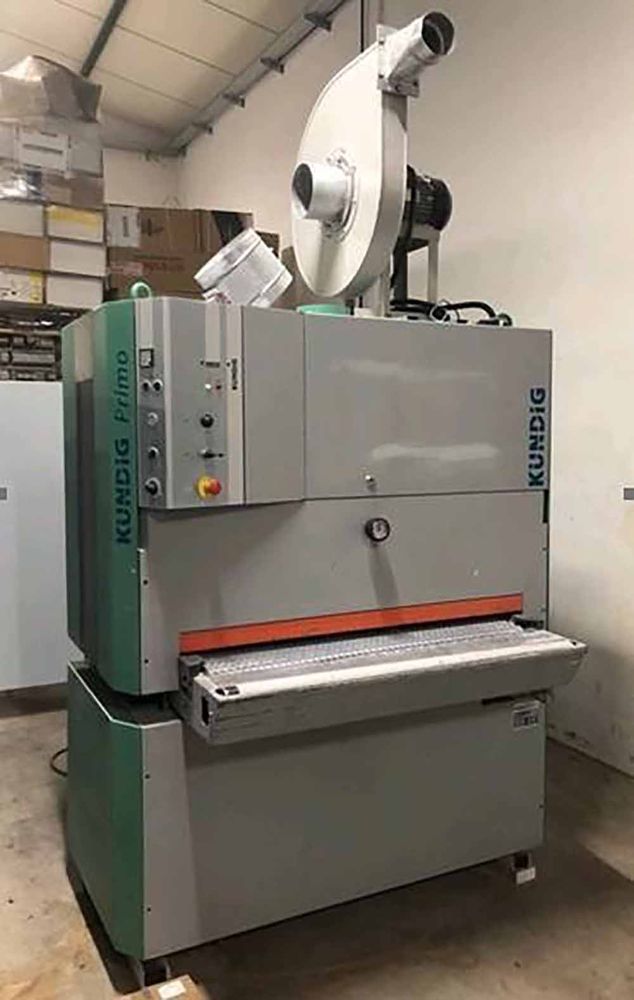

Kundig PRIMO

Ref : 2730424-15-MT
Condition : Used
Manufacturer : Kundig
Model : PRIMO
Year(s) : 2002
Quantity : 1
Location : Seller or machines location:
RUSSIA and Central Asia

Features:
• Grinding width 1100 mm
• One combined grinding unit: Contact rubber roller with a diameter of 150 mm, hardness 80 Shore and Segmented iron
• Segment width 35 mm
• Drive motor with a power of 9 kW, 380 volts
• Conveyor feed stepless, 3…15 m / min
• Grinding belts measuring 1120 x 2000 mm
• Grinding belt speed 3….15 m/min
• Automatic panel thickness measurement
• Workpiece thickness 3 - 160 mm
• Transport carpet with vacuum device, 4 kW fan
• Brush unit for cleaning the part at the machine outlet
• Air blower and ionization at the machine outlet
• Machine weight: 2300 kg
• Dimensions: 1640 x 1600 x 2100 mm
