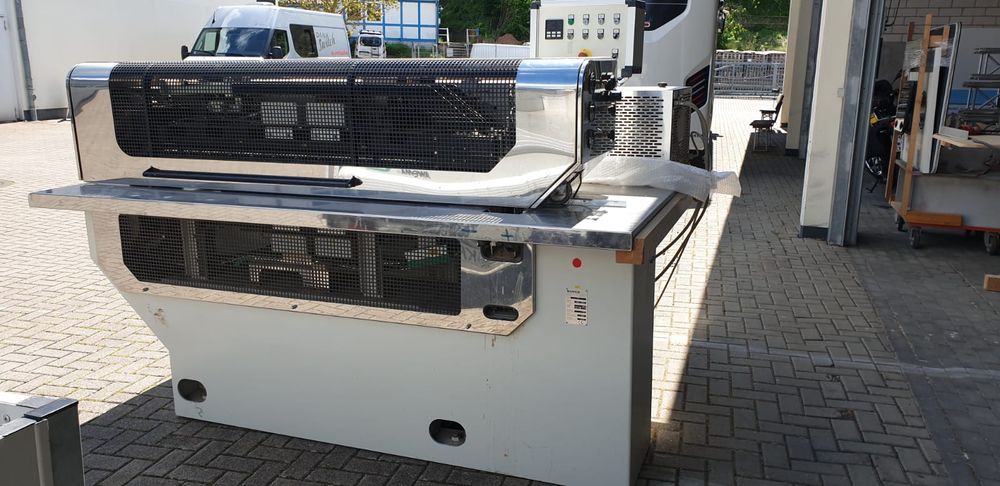

Kuper FLI

Veneer thicknesses: approx. 0.3 to approx. 1.5 mm.
Stand projection: 1000 mm
Veneer strip length: from approx. 500 mm
Veneer strip width: from approx. 45 mm
Feed speed: approx. 20 - 50 m/min
Heating zone length: 1200 mm
Heating temperature: max. approx. 220 °C
Operating voltage: 400 V 50 Hz 3-phase
Total connected load: approx. 9.3 KVA
Average power requirement: approx. 5 kW
Air consumption: approx. 5 NL/min at 6 bar
RACK 1100 WT water cooling unit with FLI loop package
(Water cooling extends the service life of the Kaurit glue)
Intermediate transport for a minimum veneer strip length of approx. 350 mm
