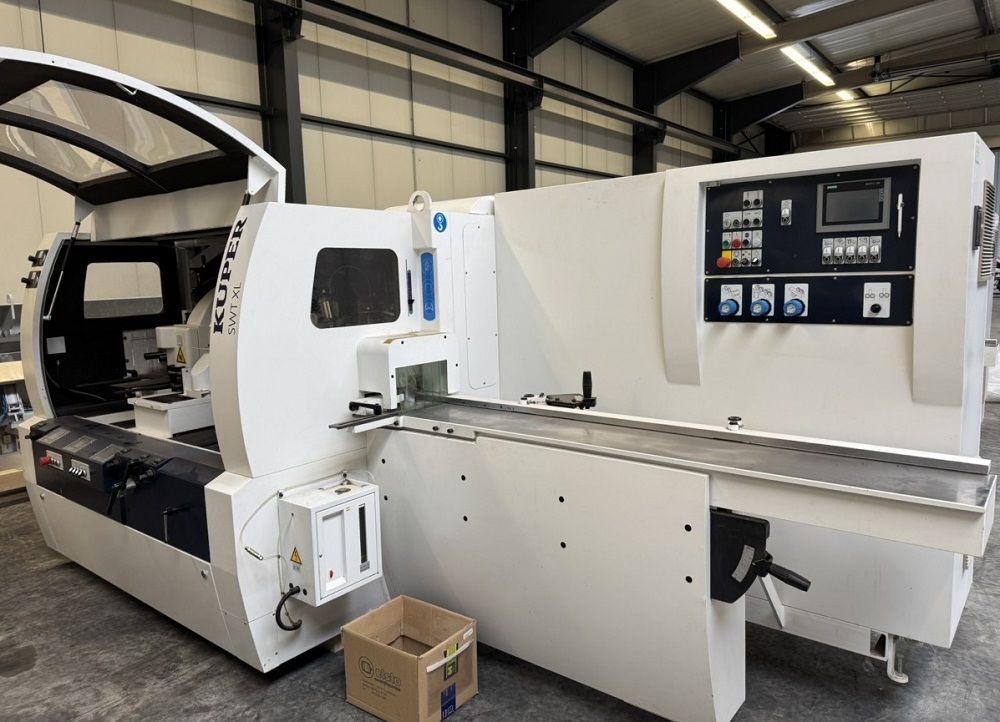

Kuper SWT XL-5

AUTOMATIC PLANER AND MOULDER
LIKE NEW, showroom machine !
- 5 spindles: bottom, right, left, top, bottom
- Speed: frequency-controlled 4,000 - 6,000 rpm, spindle 4.5 to 8,000 rpm
- Width and height motor-controlled: left spindle radial upper spindle axial
- Feed carrier motor-controlled
- Additional motor-controlled positioning: right spindle radial and axial, left spindle axial
- working width 250 mm

TECHNICAL DATA:
Working width (perimeter of tools 163 mm) 15 - 230 mm
Working height(perimeter of tools 163 mm) 10 - 150 mm
(perimeter of tools 123 mm) 10 - 160 mm

Min. workpiece length:
single piece: min. 800 mm
piece by piece: min. 300 mm
The processing of the work pieces is depending on the
following operating parameters:
material, wood moisture, tools, diameter of the chip removal and feed speed.
If necessary adjustments to the operating parameter have to be done.

SPINDLE CONFIGURATION
bottom, right, left, top, bottom

1st spindle: HORIZONTAL, BOTTOM
Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP)
Diameter 40 mm
Spindle length 250 mm
Usabale length for tools Spindle length minus approx. 6 mm
Drive, frequency-controlled 4000 - 6000 rpm
Perimeter of tools 125 - 160 mm
Reference cutter Diameter difference
20 - 25mm to the cutterhead
Connecting piece D = 125 mm
Quick action lock nut Pro-Lock

2nd spindle: VERTICAL, RIGHT
Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP)
Diameter 40 mm
Spindle length 165 mm
Usable length for tools spindle length minus approx. 6 mm
Drive, frequency-controlled 4000 - 6000 rpm
Perimeter of tools 112 - 200 mm
Adjustment path axial 60 mm
Adjustable table plate to tool radius
Standard profile depth 20 mm
Connecting piece D = 125 mm
Aspiration individual adjustable
shavings guiding plate
Quick action lock nut Pro-Lock

3rd spindle: VERTICAL, LEFT
Siemens IE3 motor with inverter brake 7,5 kW (10 HP)
Diameter 40 mm
Spindle length 165 mm
Usable length for tools spindle length minus approx. 6 mm
Drive, frequency-controlled 4000 - 6000 rpm
Perimeter of tools 112 - 200 mm
Adjustment path axial 60 mm
Standard profile depth 20 mm
Adjustable table plate to tool radius
Connecting piece D = 125 mm
Aspiration individual adjustable
shavings guiding plate
Quick action lock nut Pro-Lock

4th spindle: HORIZONTAL, TOP
Siemens IE3 motor with inverter brake 7,5 kW (10 HP)
Diameter 40 mm
Spindle length 235 mm
Usable length for tools spindle length minus approx. 6 mm
Drive, frequency-controlled 4000 - 6000 rpm
Perimeter of tools 112 - 200 mm
Pressure shoe pneumatically, via linear guides dynamically adjustable
Standard profile depth 20 mm
Connecting piece D = 125 mm
Aspiration individual adjustable
shavings guiding plate
Quick action lock nut Pro-Lock

5th spindle: HORIZONTAL, BOTTOM
Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP)
Diameter 40 mm
Spindle length 235 mm
Usable length for tools spindle lenght minus approx. 6 mm
Drive, frequency-controlled 4000 - 6000 rpm
Perimeter of tools 112 - 200 mm
Adjustment range axial 20 mm
Connecting piece D = 125 mm
Aspiration individual adjustable shavings guiding plate
Standard profile depth 20 mm
Quick action lock nut Pro-Lock

FEEDSYSTEM
With a central motor the power is transmitted via form-locking worm gears and free jointshafts to each feed roller.
Feed motor with electronical brake 4 kW
Speed variable by frequency converter 6 - 24 m/min.
Motor (hight adjustment) 0,55 kW
Two driven infeed roller upstream of the first bottom
spindle can be pneumatically raised and lowered via selector switch.
Short roller distance swivelling from top, in opposite to the right spindle for an easy tool change.

ELECTRIC
400 Volt/3 PH/PE
3-pole main switch, 50 Cy, IP 54
Installation according to the current standards

MACHINE BASIC STAND, TABLES AND GUIDES
Heavy construction of the basic stand, torsion free and low vibration
Infeed table 2000 mm long, hard chromium plated
1 driven, double mounted roller in the infeed table and in machine end table
Manual lubricant pump

PRESSURE ELEMENTS AND GUIDANCES
Lateral pressure roller in the infeed table, spring mounted
Lateral pressure of the roller before the left spindle, revolving and spring mounted
Addtional ruler (height adjustable) behind left spindle
Height of the fence in the machine 25 - 30 mm, with lengthwise adjustable lipps in the range of right spindles

MACHINE MAINTENANCE
The main lubricating points are grouped
centrally at the front of the machine.
Each guidance has a separate nipple.
Lubrication intervals are marked by colored markings.

ASPIRATION
Minimal suction speed on the suction socket 30 m/sec

SECURITY
LED light inside the security cover.
Machine in accordance with the valid CE
standards, supplied with operating tools however without processing tools

COLOURS
RAL 9003 (signal white)
RAL 5011 (steel blue)

WORKING WIDTH 15 - 250 MM
Increases the working width from 230 to 250 mm.
Horizontal spindles extend each by 20 mm.

Comfort control K2 Basic 7"-Touch
- Siemens 7" color touch screen
- Easy management and preview of programs
- Programs are numerically saved
- Graphical user interface
- Additional 3,5" screen at the front of the machine to show the present - set - position and the need tool radius for the program (per motorized spindle)
- Simplified set / correction by dynamic joging function of the positioning motor
- Independent surface for a quick handling of the four side dimensions (height / width)
- Maintenance intervals calculated via running meter
Infeed table 2.500 mm long
- Hard chromium plated

Automatic lubrication pump
Electrical positioning for the feed beam

Motorized adjustment system for spindle in radial direction at first right spindle
- Backlash-free adjustment via ballscrew
- Position measurement directly from the encoder to the adjusting spindle

Motorized adjustment system for spindle in axial direction at first right spindle
- Backlash-free adjustment via ballscrew
- Position measurement directly from the encoder to the adjusting spindle

Motorized adjustment system for spindle in radial direction at first left spindle
- Backlash-free adjustment via ballscrew
- Position measurement directly from the encoder to the adjusting spindle

Motorized adjustment system for spindle in axial direction at first left spindle
- Backlash-free adjustment via ballscrew
- Position measurement directly from the encoder to the adjusting spindle

Motorized adjustment system for spindle in radial direction at first top spindle
- Backlash-free adjustment via ballscrew
- Position measurement directly from the encoder to the adjusting spindle

Chipbreaker before the spindle pneumatic suspension and adjustable from outside with control at first top spindle

SPINDLE SPEED 4.000 - 8.000 RPM at first top spindle
- Incl. the speed corresponding high performance ball bearings
- Spindle mounted by default with four bearings

SPINDLE SPEED 4.000 - 8.000 RPM at second bottom spindle
- Incl. the speed corresponding high performance ball bearings
- Spindle mounted by default with four bearings

Machine WITHOUT processing tools.
IF you want we can offer you NEW tools for this machine.
