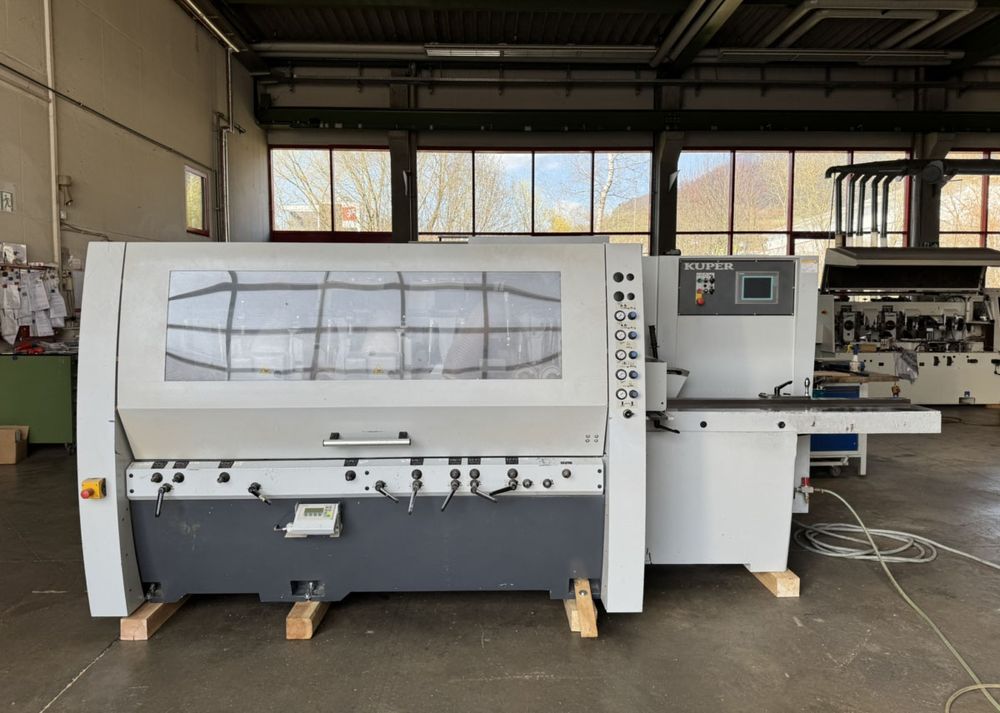

Kuper SWT XL-6

Four-Sided Planer
Machine fully functional tested!
Working width min/max: 18 - 230 mm
Working height min/max: 8 - 150 mm

Spindle configuration:
1st Spindle - bottom
Power: 5.5 kW
Speed: 6,200 rpm, incl. brake
Spindle diameter: 40 mm
Spindle length: 240 mm
Pulley diameter: 160 mm
Adjustment: axial and radial, manual

2nd Spindle - right
Power: 5.5 kW
Speed: 6,200 rpm, incl. brake
Spindle diameter: 40 mm
Spindle length: 160 mm
Pulley diameter: min. 110 mm - max. 200 mm
Adjustment: axial and radial, manual, via mechanical digital display
Adjustment: vertical 35 mm below Table

3rd Spindle - Left
Power: 7.5 kW
Speed: 6,200 rpm, including brake
Spindle diameter: 40 mm
Spindle length: 160 mm
Cutting circle diameter (125 mm): min. 110 mm - max. 200 mm
Adjustment: axial and radial manual via mechanical digital display
Adjustment: horizontal 18 mm to 230 mm at 125 mm diameter,
vertical 35 mm below table

4th Spindle - Top
Power: 7.5 kW
Speed: 6,200 rpm, including brake
Spindle diameter: 40 mm
Spindle length: 240 mm
Cutting circle diameter (125 mm): min. 120 mm - max. 200 mm
Adjustment: axial manual and radial electric via mechanical digital display
Adjustment: vertical 8 mm to 150 mm at 125 mm diameter,
axial 26 mm

5. Spindle - top
Power: 7.5 kW
Speed: 7,200 rpm, incl. brake
Spindle diameter: 40 mm
Spindle length: 240 mm
Cutting circle diameter 125 mm: min. 120 mm - max. 200 mm
Adjustment: axial manual and radial electric according to mechanical digital display
Adjustment: vertical 8 mm to 150 mm at 125 mm diameter,
axial 26 mm

6. Spindle - bottom
Power: 7.5 kW
Speed: 7,200 rpm, incl. brake
Spindle diameter: 40 mm
Spindle length: 240 mm
Cutting circle diameter 125 mm: min. 110 mm - max. 250 mm
Adjustment: vertical manual according to mechanical digital display, axial manual
Adjustment: Radial 8 to 150 mm with a 125 mm diameter
Axially 35 mm

Further features:
-Infinitely variable feed speed, 7-36 m/min, 5.5 kW motor
-Electric height adjustment, 0.75 kW
-Siemens touchscreen
- Includes existing planer heads
