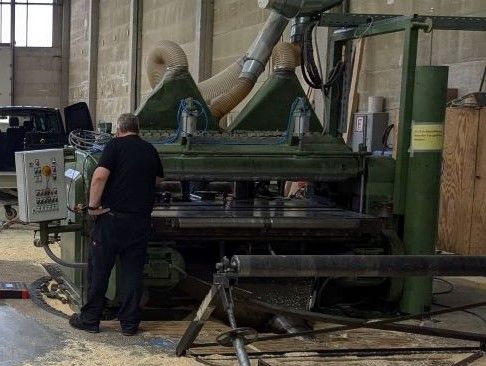

Kupfermühle DOMA-G 2050

Planer for laminated beams
Working width: 2050 mm
Working height: 100 - 400 mm
Working height 4-side: 450 mm
Number of spindles: 4
Spindle configuration: 2 x bottom - 2 x top + left + right
Spindle diameter: X-X-X-X-45-45 mm
Spindle rotation speed: 5300 U/min
Outboard bearings for spindle: 1-2-3-4-5-6
Motor power: 18,5-18,5-22-22-15-15 kW
Working width adjustments: Digital adjustments
Working height adjustments: Digital adjustments
Feed speed: 26 m/min
Feed motor: 5,5 kW
Driven bed rollers: 2
Infeed rollers: 2
Tools vertical: 140 x 450 x 45
Constant table height: option
Chip removal bottom: 15 mm
Chip removal top: 20 mm
Chip removal right: 20
Chip removal left: 20
Extraction socket diameter: 300-200-200-160-160 mm
Weight: 8000 kg
Dimensions: 3000 x 2900 x 1700 mm
Voltage: 400V 50Hz 3Ph.
