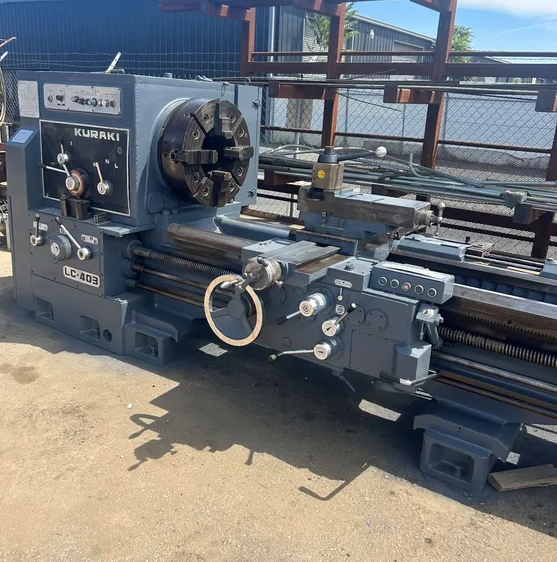

Kuraki Engine Lathe 350 RPM LC-403

Ref : 2737555-3-AW

Condition : Used

Manufacturer : Kuraki

Type : Engine Lathe

Spindle Speed : 350 RPM

Model : LC-403

Year(s) : 1982

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Swing over bed: 33"
Swing over cross slide: 20.75"
Distance between centers: 120"
Bed width: 23.5"
Spindle speeds: (12) 6–350 RPM
Spindle motor: 30 hp
Spindle bore: 12.5"
Spindle nose: A2-20
Inch threads: (41) 1.75–56 TPI
Metric threads: (41) 0.75–28 mm
24" front 4-jaw chuck
24" rear 4-jaw chuck
Tailstock
Swiveling compound
Tool post
Taper attachment
Thread dial
Coolant
Rapid traverse
Dimensions (approx.): 244" × 72" × 73" high
Weight (approx.): 21,000 lbs
