Kusters 222/11/1600 160 Cm

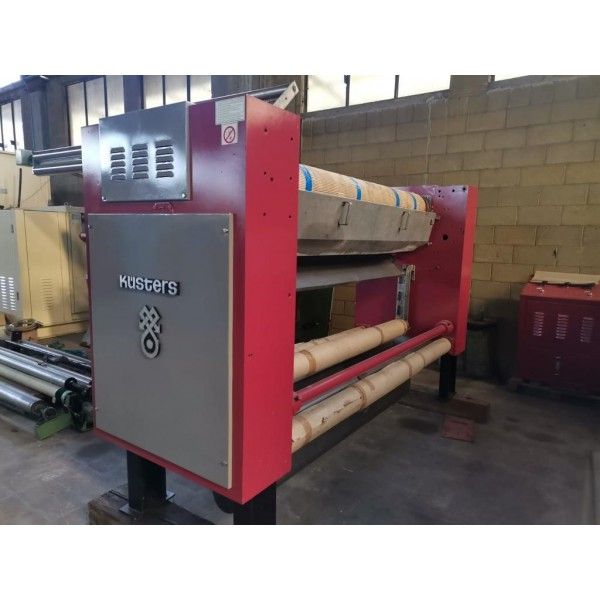

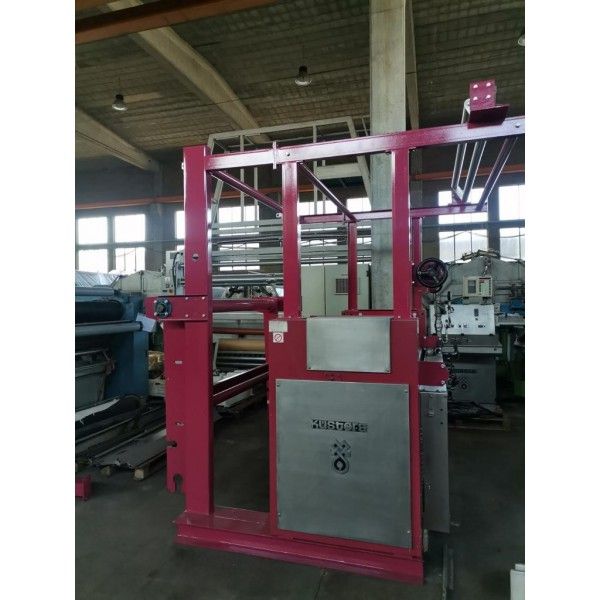

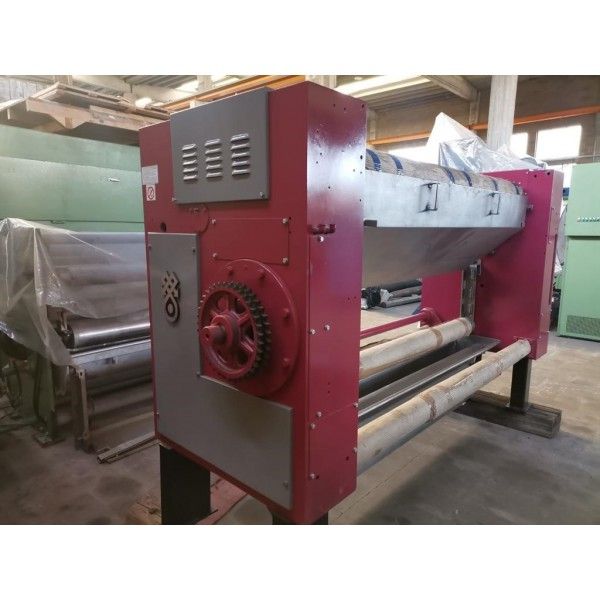

KUSTERS COLD PAD BATCH DYE PADDER TYPE 222/11/1600, RE-CON TO ORDER YEAR 2026
SUITABLE FOR COLD PAD BATCH PRE-TENSION ENTRY, E+ L KF20 GUIDERS MOUNTED ON A MANUAL ADJUSTER RAIL,
2 ENTRY PATH ROLLERS IN 316 STAINLESS - STEEL LIQUOR TROUGH APPROX 55 LITRES LIQUOR CONTENT CONSTRUCTED IN 316 STAINLESS-STEEL WITH COOLING JACKET.
1 TROUGH ROLLER AND DISPLACER OR 4 - TROUGH ROLLERS FOR UNDER LIQUOR SQUEEZING, PNEUMATIC LIFTING
AND LOWERING WITH LIQUOR LEVEL SENSING TO SIGNAL 4-1 RATIO DOSING PUMP. ONE ADJUSTABLE RUBBER COVERED EXPANDER BOW ROLLER,
2 - SWIMMING ROLLERS 220MM DIAMETER, COVERED WITH PVC NITRILE RUBBER SHORE HARDNESS 65-70.
THE TWO HYDRAULIC SWIMMING ROLLERS ARE HORIZONTALLY OPPOSED TO GIVE A VERTICAL FABRIC LINE,
SQUEEZE PRESSURE THAT IS CONTROLLED VIA THE INFINITELY VARIABLE HYDRO PNEUMATIC CONTROL SYSTEM
WITH 3 X PRECISION PRESSURE REGULATORS PRODUCING PERFECTLY EVEN EXPRESSION ACROSS FACE OF ROLLERS,
2 STAINLESS STEEL SPRAY PIPES TO WASH SQUEEZE ROLLERS SAFETY NIP GUARDS WITH EMERGENCY STOP WIRE FITTED TO COMPLY
WITH EUROPEAN CE MARKINGS MAIN DRIVE 11 KW AC 415 VOLTS 50 HZ

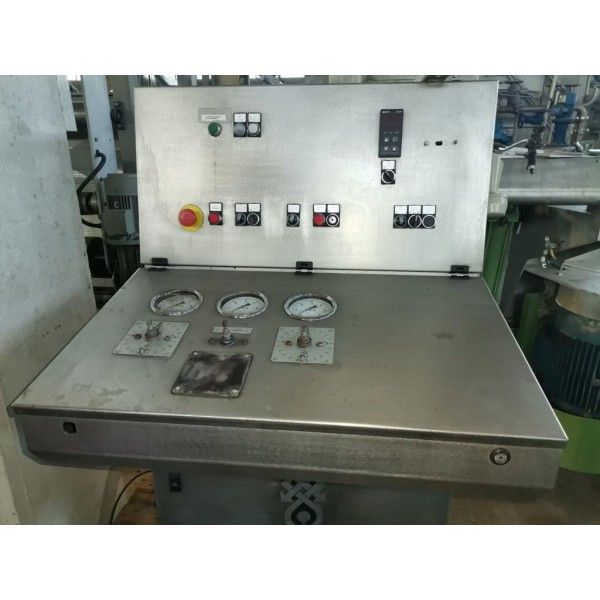

RIGHT ANGLED GEARED MOTOR CONTROLLED BY ELECTRONIC VARIABLE SPEED INVERTER MOUNTED IN NEW IP55 CONTROL PANEL INFINITELY VARIABLE SPEED CONTROL 0-60 METERS PER MINUTE
FACILITY TO RECEIVE A VOLTAGE SIGNAL VIA A TACHO GENERATOR FROM ANY SELECTED MASTER DRIVE OPERATORS REMOTE STATION
WITH AUTO-MANUAL CONTROLS TAKE OFF ON TO A CENTER WIND NONE CONTACT BATCHER. COMPLETE WITH 4-1 RATIO DOSING PUMP
