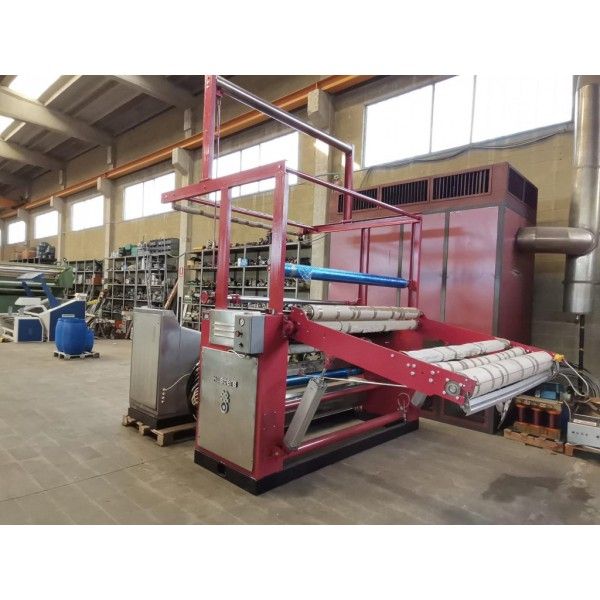

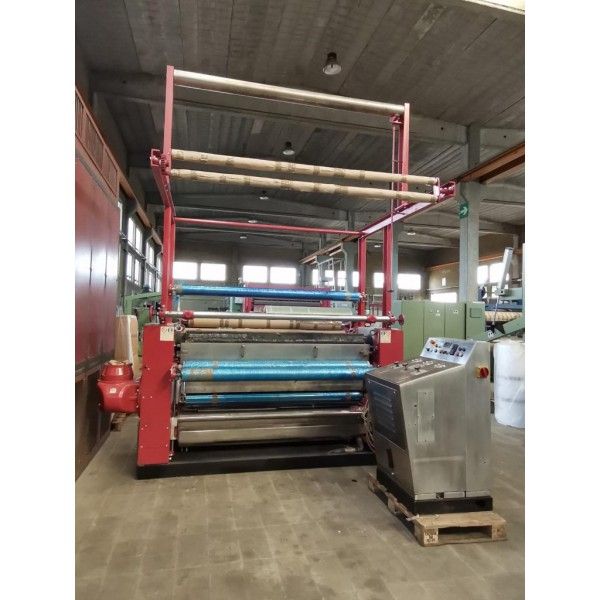

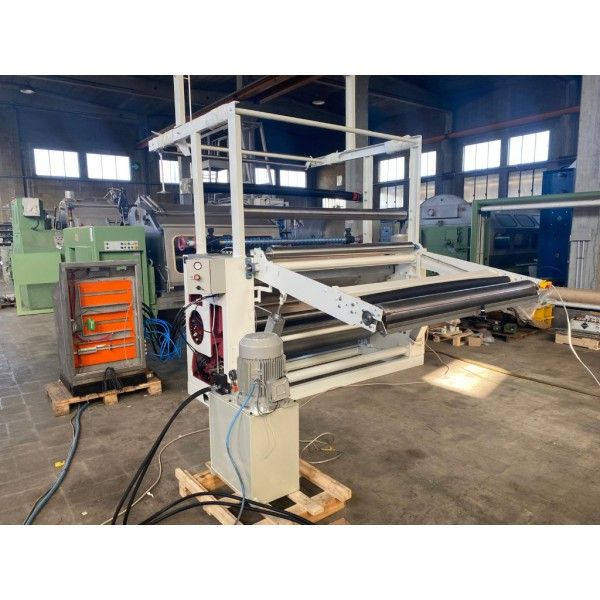

Kusters 222-11-1800 180 Cm

RECONDITIONED TO ORDER 2026 SUITABLE FOR COLD PAD BATCH DYEING, (ORIGINAL YEAR 2004)
PRE-TENSION ENTRY, E+L KF20 GUIDERS MOUNTED ON A MANUAL ADJUSTER RAIL 2 ENTRY PATH ROLLERS IN 316 STAINLESS STEEL.
LIQUOR TROUGH APPROX 55 LITRES, LIQUOR CONTENT CONSTRUCTED IN 316 STAINLESS STEEL WITH COOLING JACKET.
1 - TROUGH ROLLER WITH LIQUOR DISPALCER, PNEUMATIC LIFTING AND LOWERING WITH LIQUOR LEVEL SENSING TO SIGNAL ONE ADJUSTABLE RUBBER COVERED EXPANDER BOW ROLLER

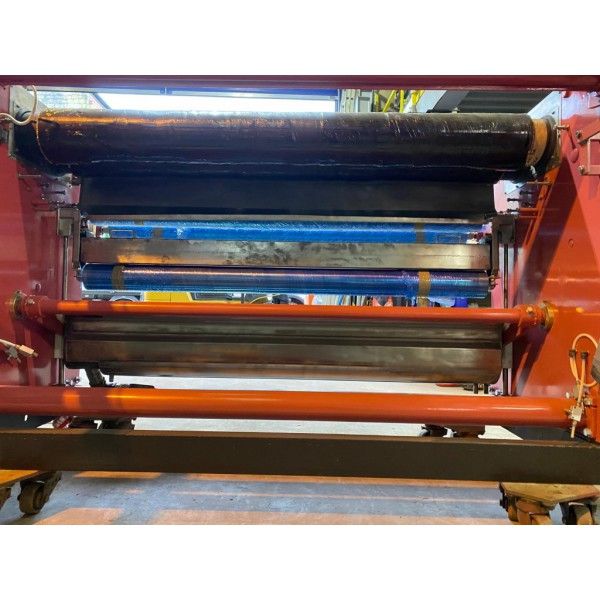

2 - SWIMMING ROLLERS 220MM DIAMETER, COVERED WITH PVC NITRILE RUBBER SHORE HARDNESS 65 THE TWO HYDRAULIC SWIMMING ROLLERS ARE HORIZONTALLY OPPOSED TO GIVE A VERTICAL FABRIC LINE,
THE SQUEEZE PRESSURE IS CONTROLLED VIA THE INFINITELY VARIABLE HYDRO PNEUMATIC CONTROL SYSTEM
WITH 3 PRECISION PRESSURE REGULATORS PRODUCING PERFECTLY EVEN EXPRESSION ACROSS FACE OF ROLLERS 2 STAINLESS STEEL SPRAY PIPES TO WASH SQUEEZE ROLLERS,
SAFETY NIP GUARDS WITH EMERGENCY STOP WIRE FITTED TO COMPLY WITH EUROPEAN CE MARKINGS NEW MAIN DRIVE SIEMANS 11 KW AC 415 VOLTS 50 HZ
RIGHT ANGLED GEARED MOTOR CONTROLLED BY ELECTRONIC VARIABLE SPEED INVERTER MOUNTED IN NEW IP55 CONTROL PANEL INFINITELY VARIABLE SPEED CONTROL 0-60 METERS PER MINUTE
FACILITY TO RECEIVE A VOLTAGE SIGNAL VIA A TACHO GENERATOR FROM ANY SELECTED MASTER DRIVE STAINLESS STEEL OPERATORS REMOTE STATION
WITH AUTO-MANUAL CONTROLS TAKE OFF ON TO A CENTER WIND NONE CONTACT BATCHER COMPLETE
WITH SERA 4-1 RATIO DOSING PUMP 2 X 500 LITRE MIXING TANKS WITH MIXERS RECONDITIONING
