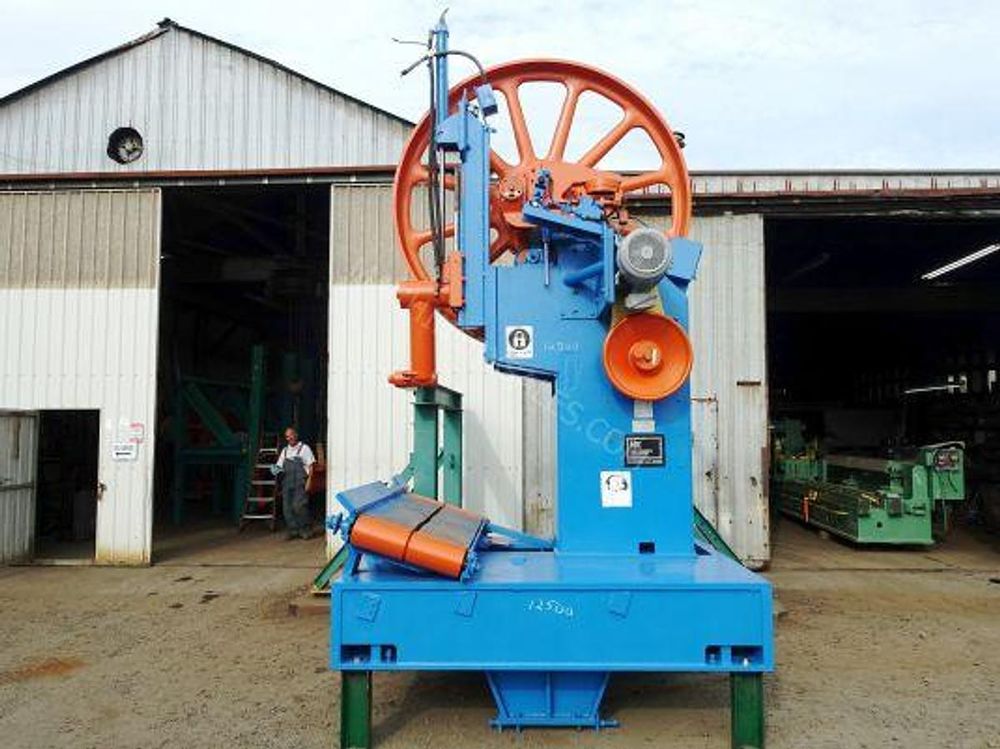

L-B 7 FT HSA-1 HEADRIG BANDMILL (SLANT)

7 FT L&B HEADRIG BANDMILL (SLANT)
- Built in 1988 as a 17 degree slant configuration
- Double Column High Air Strain Design (44,000 lb maximum design strain)
- RH installation (Bandmill on the left and Carriage on the right looking in the direction of flow)
- Standard column (minimum 10' - 4" and Maximum of 11' - 4" Wheel centers)
- Nominal saw length approximately 43' - 6"
- Moving top saw guide (20" minimum to 42-1/2" maximum from top of bunk)
- Motorized top wheel lift c/w manual tilt wheel
- Air strain diaphragm cylinders c/w air tank and guage
- Dead top and bottom arbor assemblies c/w heavy duty double row spherical roller bearings
- Top wheel rim thickness is 1-3/4" and bottom wheel rim thickness is 1-3/4" with a 11" face width
- Belt drive assembly
- 200 HP @ 1200 RPM 460V/3PH/60 HZ arbor motor (NOT INCLUDED)
- Off bearing belt assemble (no belt) designed for 17 degree slant arrangement (no drive)
- Air operated top wheel guard
- No controls
- No Auto lube system
