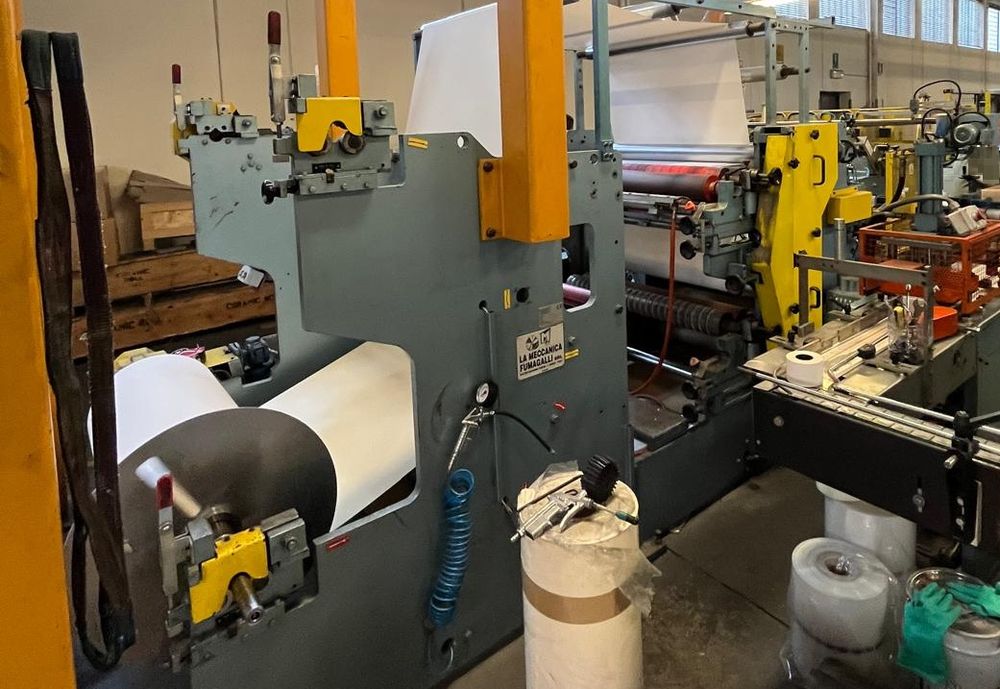

fumagalli, La meccanica 1100 mm TRLA-D-1100

Semi-automatic
2 unwinders / 2 plies rollers
2 printing colors with 2 closed chambers doctor blades and print registration
Auto-brake
Maximum working width: 1100 mm
Minimum slitting width: 25 mm
The maximum producible diameter is approximately 280 mm.
A cash roll of 400 meters, assuming a 25 mm core and standard paper of 55 g/m2,
would result in a diameter of approximately 180 mm.
With packing system with oven for perfect packaging heat shrink
Mandrels: 1 x 12, 1 x 18, 1 x 25, 1 x 38, 1 x 40 mm
Printing cylinders: 7 in total
Airshafts: 2 x 70, 2 x 76 mm
Shafts counter blades (4 in total): 1 x 52, 1 x 57, 1 x 59.5, 1 x 62 mm
Blower lift system
Vibration tube loader
1 new rubber motor roller
Coil lifting hoist capacity 15 quintal
Overall dimensions LxWxH: 5200 x 3000 x 2000 (height with electrical hoist 3900 mm)
Electrical cabinet dimension L x W: 1200 x 500 mm
Visible in production
Immediately available
