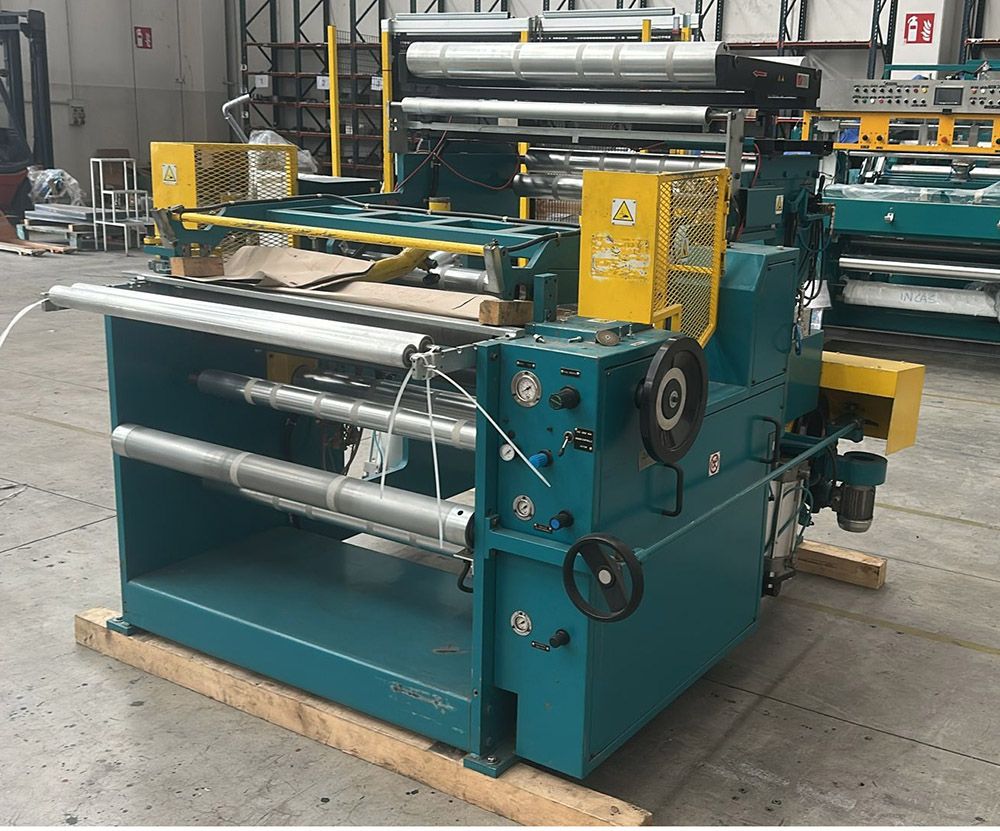

fumagalli, La meccanica TRL-AR TRL-AR

Cash roll slitter rewinder
Paper grammage: 20 – 600 gsm
Maximum parent roll working width: 1100 mm
Maximum unwinding diameter: 1200 mm
Maximum rewinding diameter: 420 mm
Minimum cutting width: 18 mm
Maximum speed: 350 m/min
Rewinding system:
2 rewinding shafts diameter 50 mm, for cores with inner core diameter 50,5 mm

Unwinding system:
Automatic electronic meter counter with double selection for automatic programmed stop with pre-deceleration
Pneumatic disc brakes with automatic tension control
Pneumatic expandable unwinder for 76 mm cores
Axial displacement device for parent roll adjustment during operation
Front handwheel adjustment for operator use with ±20 mm movement
With pneumatic lifter for parent rolls
Visible in operation
Immediately available
