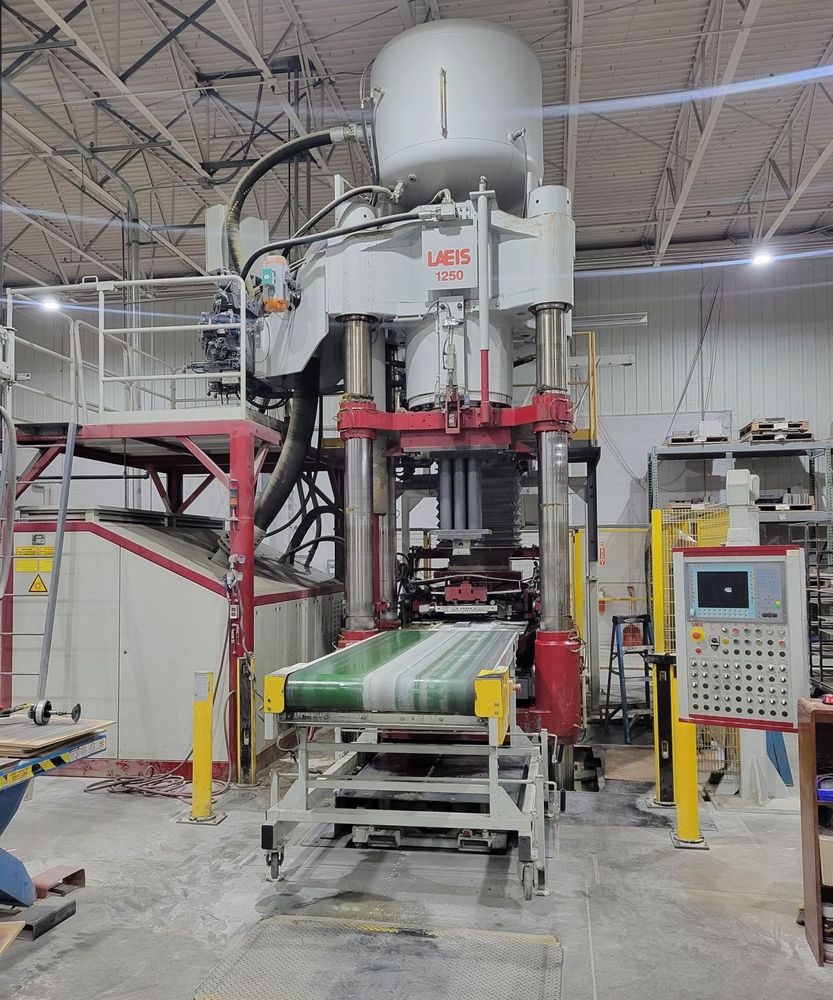

Laeis HPF II 1250 K 1,405 US tons @ approx. 2,300 PSI

Max. capacity 1,405 US tons @ approx. 2,300 PSI
Max. ejection capacity 180 US tons
Max. stroke 29.5"
Max. daylight approx. 23.6" (fill level)

Overall bed & ram area approx. 62" x 39" (R-L x F-B)
Distance between posts 53"
Usable bed & ram area 53" x 39" (R-L x F-B)
Electrical heated platens 36" x 29" (R-L x F-B)
Speeds approx. 100 parts per hour

Cylinder size approx. 39.37" diameter bore
Posts / 4 column size 10" diameter
Floor to bed height approx. 40"
Press controls Siemens PLC controller with Simatic panel touchscreen
Hydraulics 634 gallon reservoir

Electric motors (three) 440V-3-60, 296 full load amps, largest motor 66 HP
Overall dimensions 90" x 85" (R-L x F-B) x 294" press only
Motor housing dimensions 126" x 103" x 86" high
Control panel cabinet dimensions 95" x 23" (R-L x F-B) x 87" high
Approximate weight 35,000 lbs (press only)
Equipped with 2,000 kN ejection force
