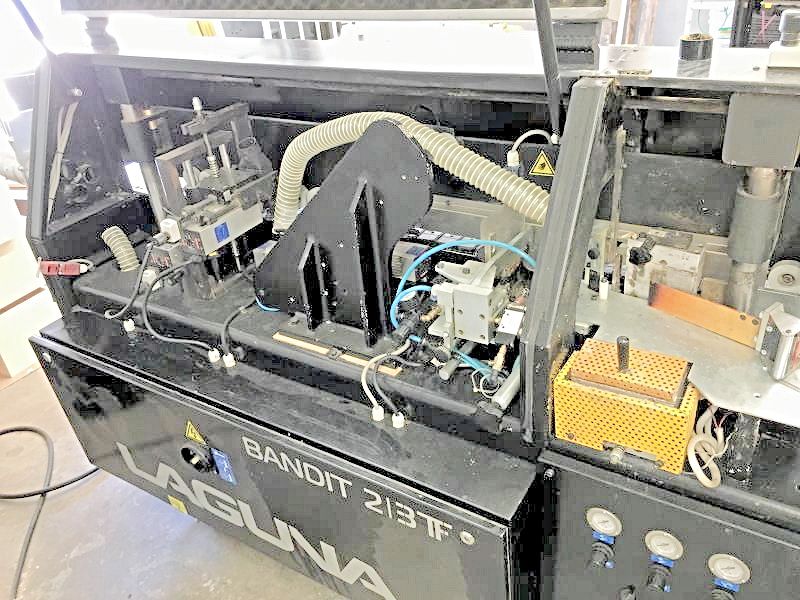

Laguna Bandit 2/3 TF

Edgebander
Voltage: 440V, 60Hz, 3Ph
0.4 - 1.5 mm Edge thickness capacity w/ automatic cutoff up to 0.8 mm (1/32")

Features:
The glue pot allows for maximum flexibility for use with PVC, wood tape, laminate and wood strips, automatic coil feed magazine, manual single feed for strips.
Min. panel width 50 mm, panel thickness 10 - 15 mm; Leister hot air blower (0.3 kW) for reactivating of adhesive, powered belt type holddown over feed thru table, feed speed 20 FPM.
Front and Rear end trim guillotine knives, top and bottom high speed (10,000 RPM) trimmers with 4 knife cutters.
Complete with waster trim removal channel and adj. outboard panel support; mounted on machine base.

Technical Specifications:
Total HP installed: 9 HP
Min. Tape Thickness: 0.4 mm
Max Tape Thickness: 3 mm
Feed Speed: 26 ft per minute
Feed System: Track Feed
Max Panel Thickness: 1 - 9/16"
Min. Panel Thickness: 3/8"
Min. Panel Width: 3 - 1/2"
Max Panel Length: 7 - 13/16"
Glue Tank Design: Thermo fused quick heating system
Glue Tank Capacity: 2 Liters Teflon Coated
Glue Tank Control: Automatically Lowers Temperature to 130 degrees
Dust Port: 2" + 4"
Air Pressure: 6.5 Bar
Top / Bottom Trim: 4 wing insert cutters 2 mm radius
Top / Bottom Trim: 2 x H.F motors with numerical readout
End Trim: H.F. motor w/ saw blade
Rough Trim: Shear cutter w/ automatic kick back
Max Coil Diameter: 31 - 1/2"
Pressure Roller #1: Motorized with separate adjustment
Pressure Roller #2: Idle w/ separate adjustment
Weight: 1496 / 1936 lbs.
