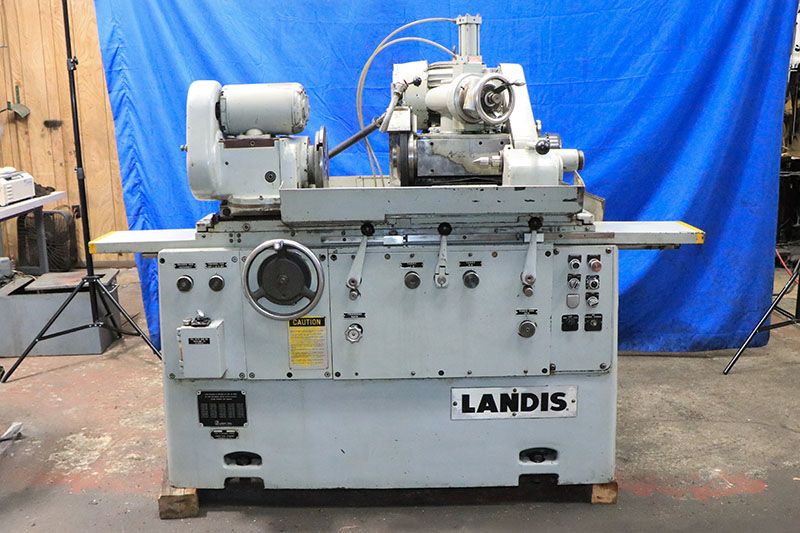

Landis 1R

Nominal swing over table 10"
Maximum swing over table 10-7/8"
Nominal distance between centers 20"
Hydraulic table traverse 2" to 240" IPM
Traverse per turn of handwheel 0.200"
Traverse handwheel graduations 0.001"
Swivel table graduated 20°, 4" per foot
Wheelhead swivels left & right of center 90°
Wheel size 12" diameter
Maximum width, full wheel 3"
Maximum hydraulic infeed - on diameter 0.090"
Rapid infeed stroke 1"
Minimum feed graduations - on diameter 0.000050"
Work diameter reduction per revolution of handwheel 0.100"
Work diameter reduction per revolution of fine feed knob 0.001"
Wheelhead motor 3 HP
Workhead swivels toward wheelhead 90°
Workhead swivels away from wheelhead 30°
Workhead spindle speeds (6) 60 to 600 RPM
Workhead spindle nose A2-5"
Workhead motor 1/4 HP
Approximate weight 4,150 lbs
Approximate dimensions for operation 8'L x 4'W x 6'6"HT
Hydraulic table traverse
Auto infeed at table reversals
Auto plunge feed
Power rapid wheelhead advance & retraction
Sparkout timer
Dual live/dead workhead spindle
Hard film microsphere wheel spindle bearings
Carriage and wheelhead ways automatically lubricated
Machine motors 3/60/230-460 volts
Equipped with face plate
Equipped with dresser
Equipped with coolant system in the base
Machine wired for 460 volts presently
