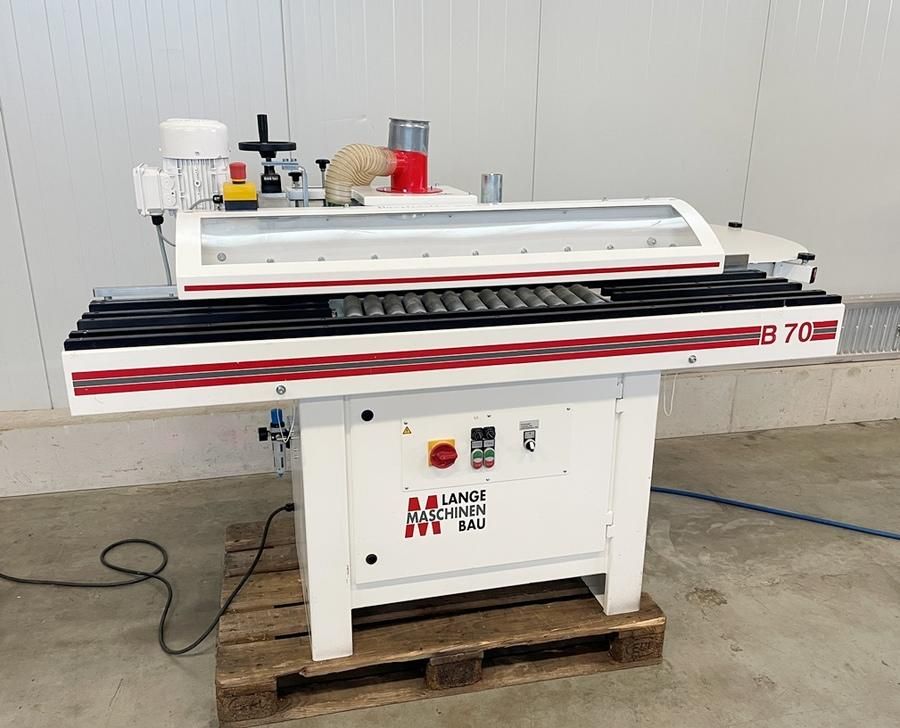

Lange B 70

Edge banding machine
Single-sided automatic edge banding machine for hot melt adhesive pre-coated edge material.
The glue is reactivated with hot air. Edges can be processed as roll material
as well as in fixed lengths from all standard materials such as PVC, ABS, melamine and real wood veneers.
Machine table with 13 rollers
Edge infeed, synchronized with the belt feed, adjustable edge thickness
Pneumatic edge separation with a knife
Belt feed, 50 mm wide toothed belt with thick rubber coating
Flush trimming unit for front and rear workpiece edges, automatic scanning on the workpiece
Flush trimming unit top/bottom with vertical scanning and horizontal guidance, reproducible setting using digital counters,
2 high-frequency motors, infinitely variable from 4000 - 18000 rpm, cutter diameter 70 mm, Z4, radius 2 mm/15"
Central extraction nozzle diameter 100 mm, 2 chip extraction hoods for hose diameter 60 mm
Automatic height adjustment of the upper cutter
Powerful hot air blower with infinitely variable electronic temperature control
Roller table diameter 800 mm
Workpiece thickness 10 - 50 mm
Workpiece width min. approx. 80 mm
Workpiece length min. approx. 200 mm
Total connection 4.5 kW
Heating power 3.4 kW
Heating time max. 2 minutes
Pneumatic connection 6 bar
Transport dimensions approx. 1800 x 700 x 1300 mm LWH (without plate)
Weight approx. 300 kg
