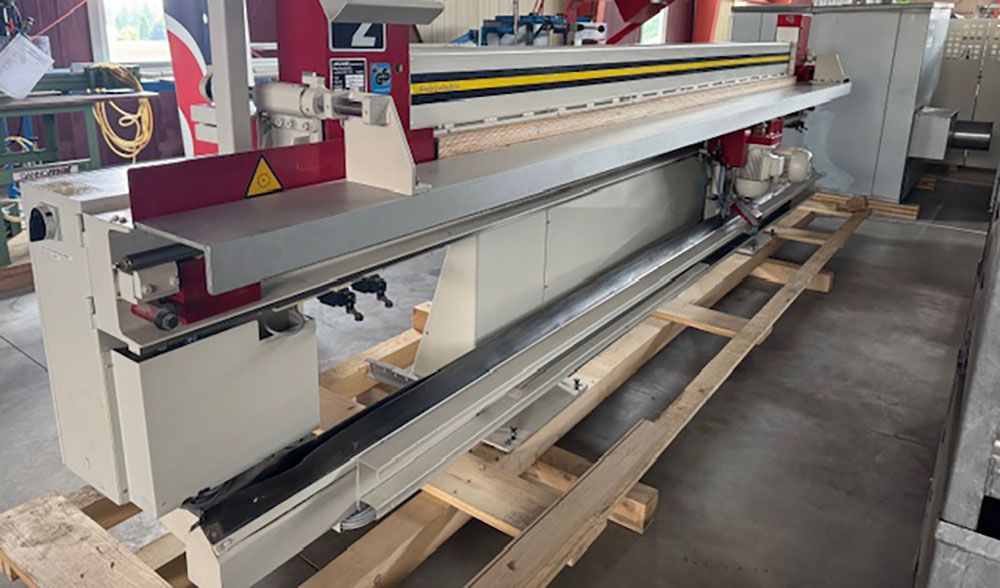

Langzauner LZ 5/2 E - 3500

Veneer saw
Technical specifications:
Cutting length: 3500 mm
Cutting and milling height: 40 mm
Space requirement with all options: L x W: Approx. 4550 x 1500 mm
Weight without options: Approx. 1150 kg
Saw motor power: 2.2 kW
Saw blade speed: Approx. 10,000 rpm
Saw blade diameter: Ø 200 mm
Cutter motor power: 1.1 kW
Cutter Speed: Approx. 10,500 rpm
Cutter dimensions (outer diameter x height x inner diameter): 85 / 50 / 30 mm
4 carbide plates
Feed motor power: 0.18 kW
Feed speed: 2 – 25 m/min, variable
Hood connection: Ø 140 mm
Air speed: ≥ 20 m/s
Volumetric flow (at 20 m/s): 1000 m³/h
Negative exhaust pressure (at 20 m/s): 1780 Pa
Required air pressure: 6 bar
Total connected power: 3.5 kW
Working current: 10 A
Operating voltage: 3 x 400 V + N + PE / 50 Hz

General characteristics:
Cutting and milling length: 3500 mm
With milling unit
With electric feed
With double linear guide
With a pneumatic saw
Saw blade adjustment (automatic)
With rack and pinion compensation in the pressure beam (for parallel closing of the pressure beam)

Included options:
Template holder
Pneumatically controlled sliding support table
Format table 3500 x 560 mm
Digital display
