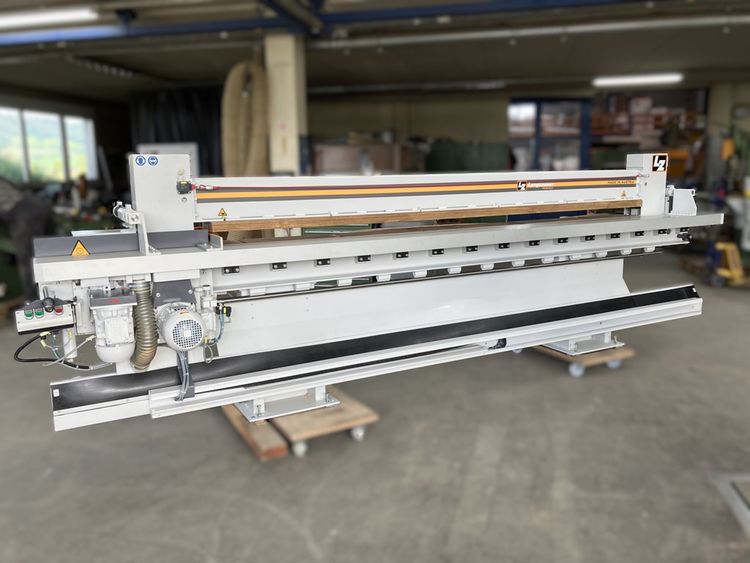

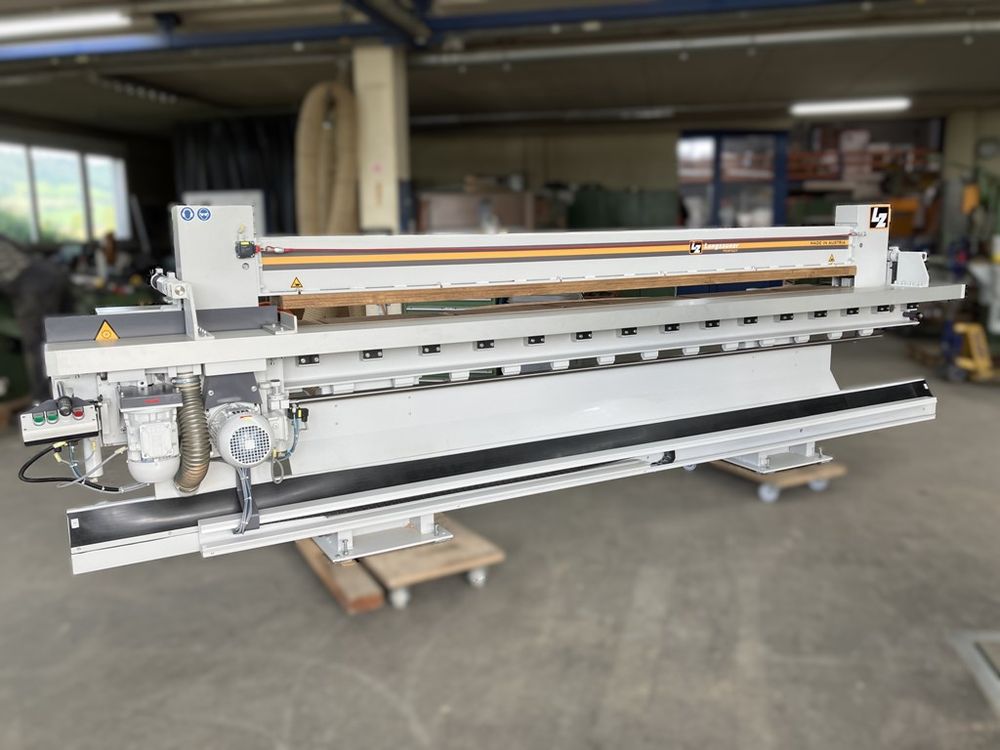

Langzauner LZ5-2 3050

Used veneer joining machine
Cutting and milling length 3,050 mm
cutting and milling height 40 mm;
saw blade dimensions 200 x 2.8 (1.5) x 16 mm Z48
saw blade speed 10,000 rpm
saw motor power 2.2 kW
cutter dimensions 85 x 50 x 30 mm – Z4
cutter speed 10,500 rpm
cutter motor power 1.1 kW
 
extraction negative pressure 1,780 Pa
extraction volume approx. 1,050 m³/h
air velocity > 20 m/sec;
extraction port diameter 140 mm 
 weight approx. 1,100 kg
external dimensions L x W x H: 3,750 x 1,600 x 1,300 mm 
workshop tested
