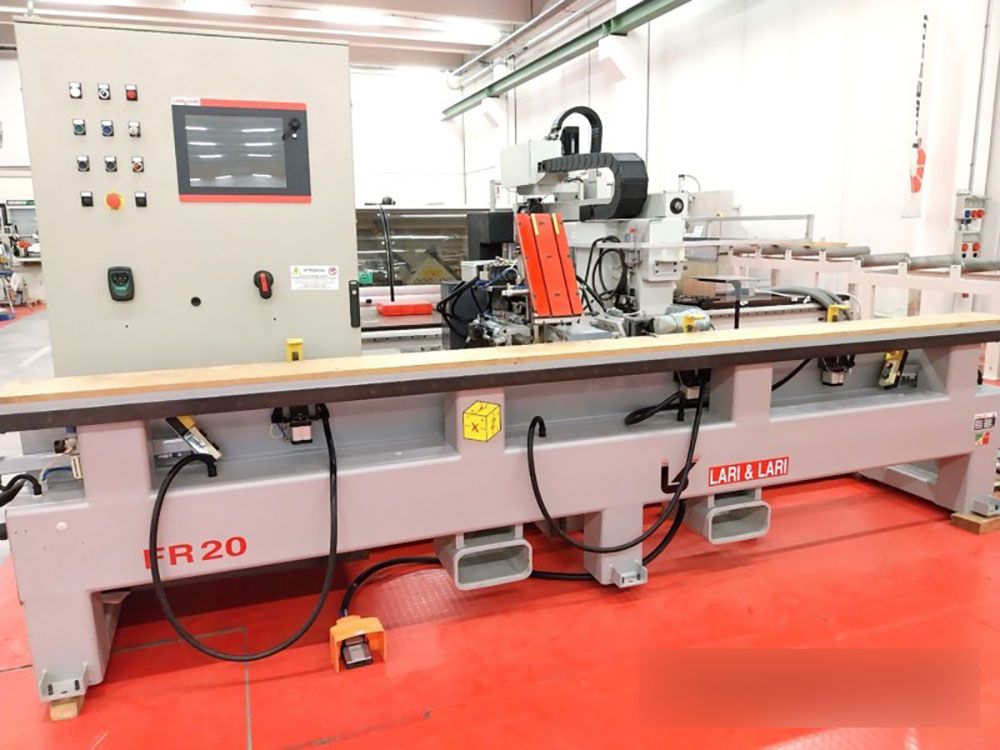

Lari & Lari FR 20 - TA

Working center for milling and boring on wood or plastic and composite materials,
wooden doors, window frames - CE Standard

Technical data:
X-axis working stroke 3250 mm
Y-axis working stroke with 90° cutter 130 mm
Z-axis working stroke with 0° cutter 290 mm
Z-axis working stroke with 90° cutter 175 mm
X-axis working speed mt/min 40
Y-axis working speed mt/min 30
Z-axis working speed mt/min 30

Hinge boring inserting unit:
Male/Female
Speed control inverter
Probe
Tool holder collet ER 25
Power of anuba head drilling electric spindle 2,2 Kw
Anuba head inclination -10 +90°

Electric spindle for milling:
2,7 Hp at 18,000 rpm
Collet chuck ER 32
Variable speed via inverter
Inclination from 0 to 90° for both vertical and horizontal machining

Machine computer: numerical control - Windows XP operating system - color video - alphanumeric keyboard - USB port - interpolation
Work table with 3 sliding clamps for locking workpieces
Installed power 12 Kw
Suction mouth diameter 120 mm
Compressed air 7-8 bar
Overall dimensions for transport mm 4100 x 1500 x 2100 h
Machine weight 1400 kg
Electrical panel 250 kg
