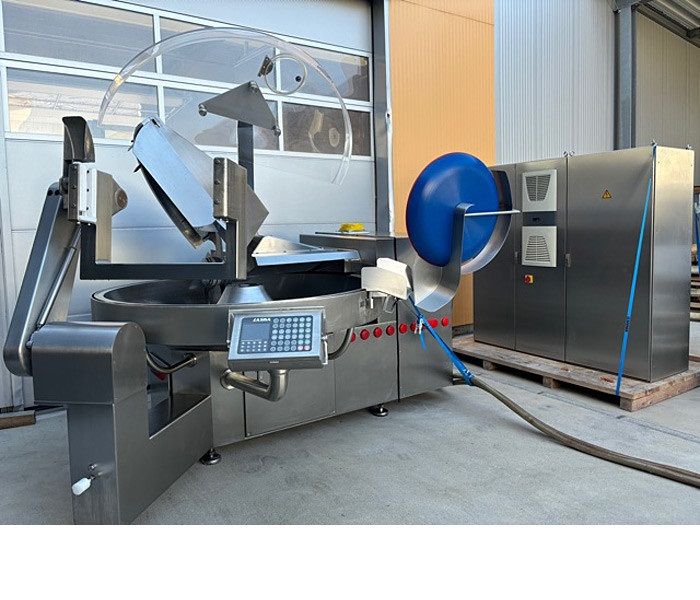

Laska KU500 CUTTER

Machine construction: stainless steel, brushed stainless steel finish, welded assembly, machine frame with closed base, adjustable feet with vibration dampers,
Light alloy (ERGAL) cutting head with anodized treatment, quick and easy assembly for ease of use, hydraulic clamping nut,
Blade mounting balancing device, ensuring vibration-free operation,
Stainless steel blade cover with removable deflector, hydraulic cylinder drive,
Energy-efficient Siemens asynchronous motor (AC) with frequency converter,
Intensity peak control thanks to the frequency converter,
Auxiliary ventilation system with filtration and monitoring unit for optimal ventilation and cooling,
Blade rotation speed, continuously adjustable up to 160 m/s (4200 rpm),
Adjustable mixing speed and rotation direction reversal,
Bowl drive via geared motor (speed 2 – 16 rpm)
Synchronization of blade rotation speed and bowl rotation speed,
Touchscreen operator panel for displaying operating parameters and messages (IP55 protection),
Temperature sensor in the cutting chamber,
Digital display and automatic shutoff based on temperature threshold, number of bowl revolutions, and timer,
Control and power units integrated into the machine,
Main disconnect switch integrated into the machine with ventilation,
Raised bowl edge,
Bowl drain plug.

Technical specifications:
Tank capacity: 500 liters,
Knife shaft drive unit power: 180kW,
IP 55 protection class
Voltage: 400V/50Hz 3-phase + neutral,

Soundproof cover: automatic speed reduction to 50% of the maximum blade speed,
Retractable tank drain, hydraulic drive,
Variable blade rotation speed or programmable mixing speed
LC-type cutting head: 1 piece, supplied with 6 blades,
Knife balancing device,
Dimensions: 4320 x 3310 x 1960 mm,
Weight: approximately 6000 kg.
