Leadermac Hypermac 730 & Prinz 3604
EUROPE (Western and Northern)
Timber planing/sanding line consisting of:
1/ A Hypermac 730 4-sided planer
2/ A Prinz 3604 wide belt sander
3/ A workpiece feeder
Dimensions: Length 43.75 m, Width 5.8 m
Each machine can be sold separately.
Technical details:

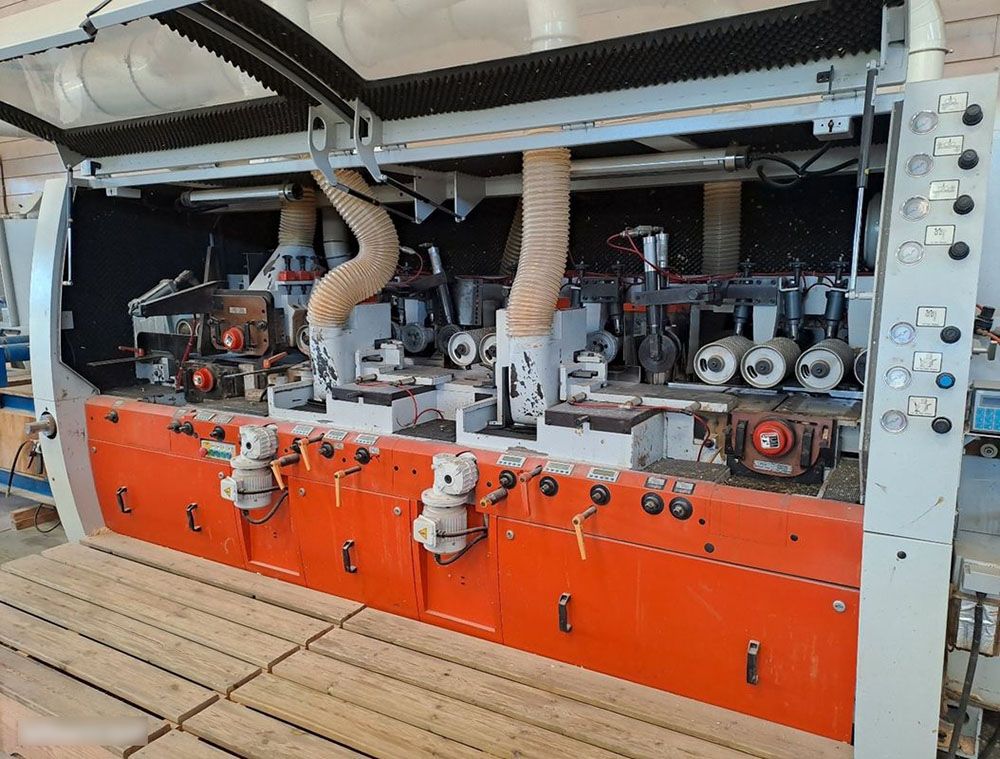

1/ Leadermac Hypermac 730 4-sided planer, year 2006
Capacity: 300 mm width * 230 mm height
7 spindles ---- 2 lower and 1 upper planers --- 2 right and 2 left spindles

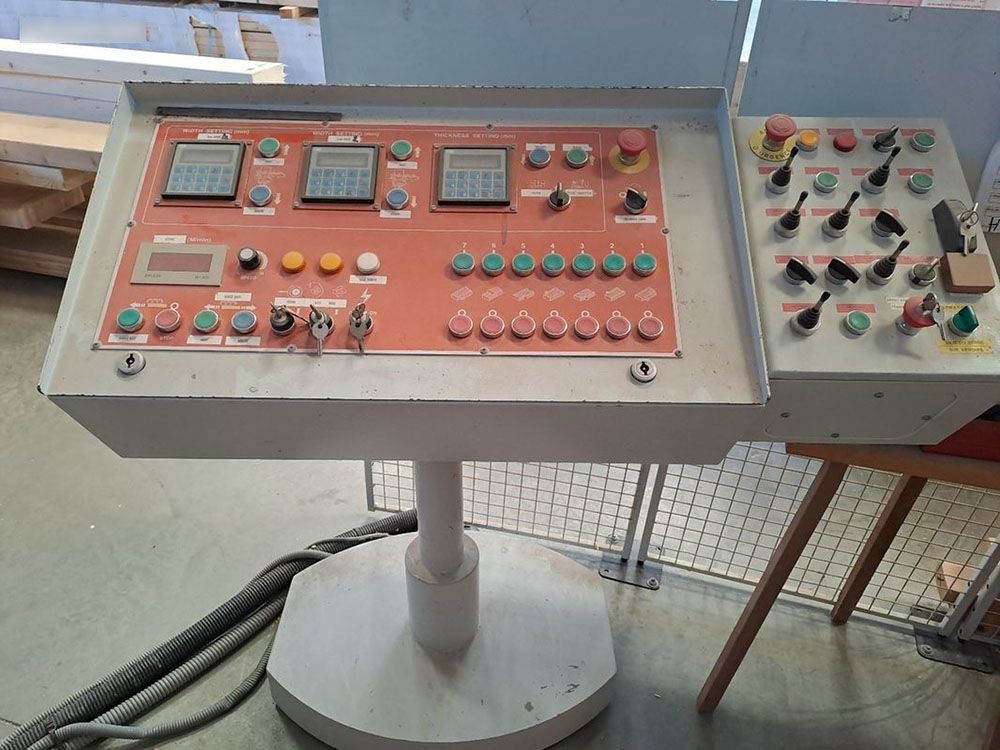

Digital with remote control panel
Counter bearing on horizontal spindles
40 mm bore
Short wood pressure plates
Soundproofed cab enclosure
Notched rollers

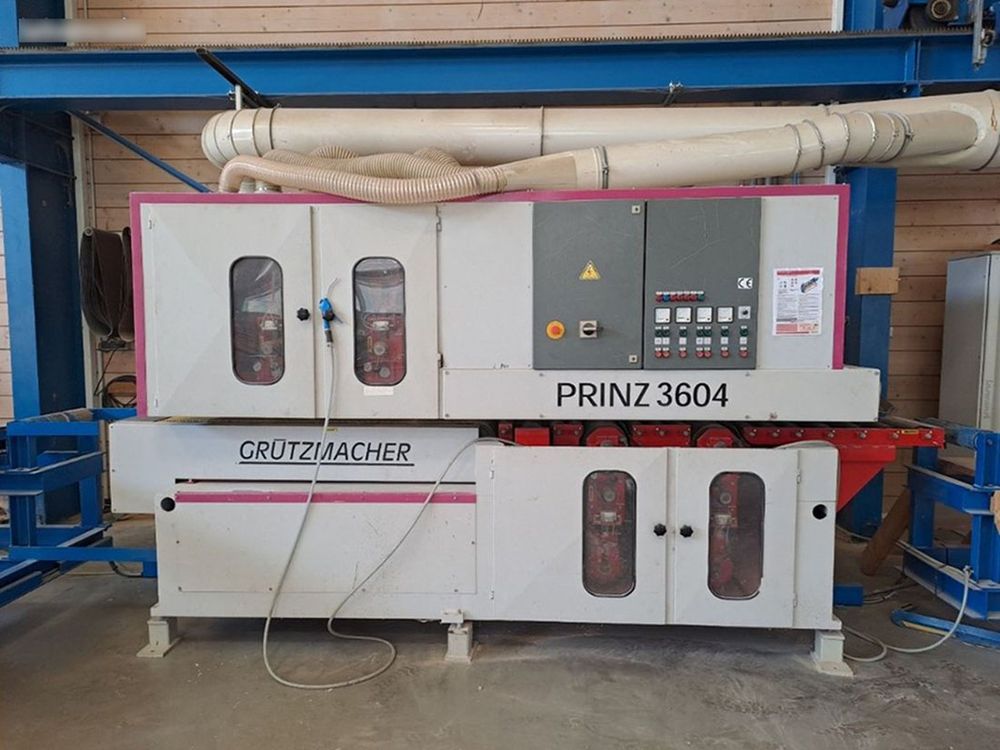

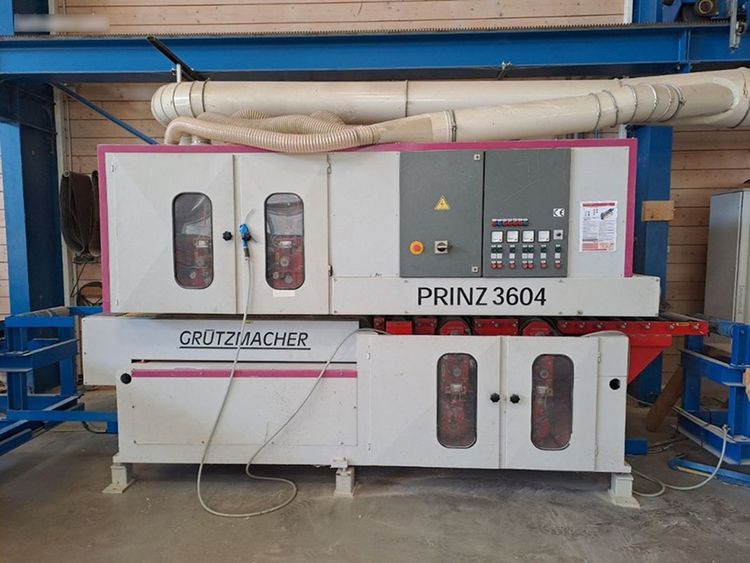

2/ Grutzmacher Prinz 3604 wide belt sander, year 2006
4 belts measuring 1900 x 380 mm
2 lower and 2 upper
Motorized brush: 1 base and 1 upper
Oscillating adjustments
Height capacity: 250 mm
Soundproofed cab

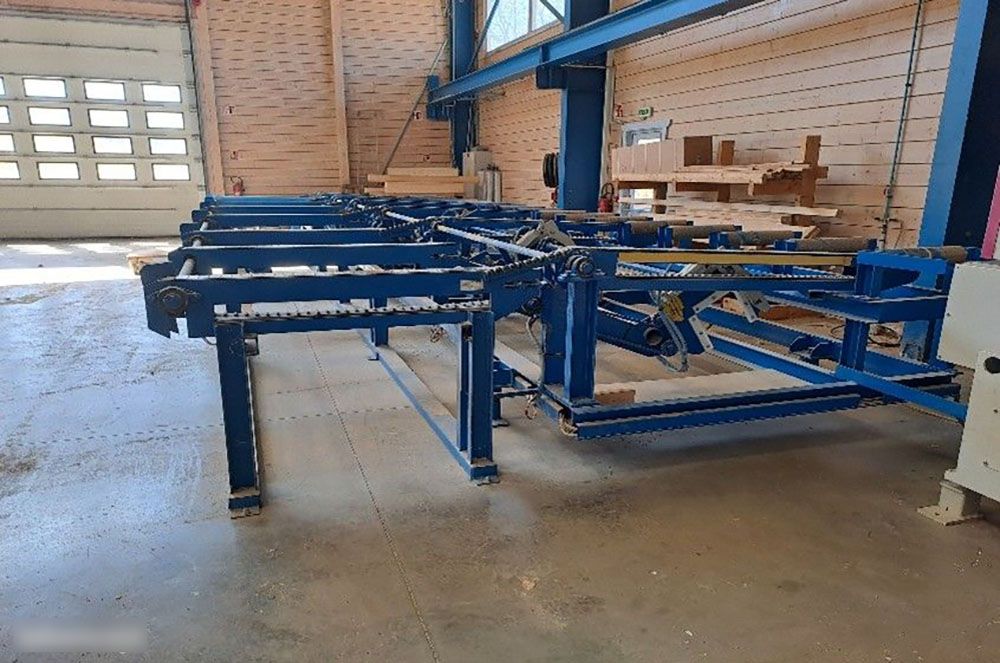

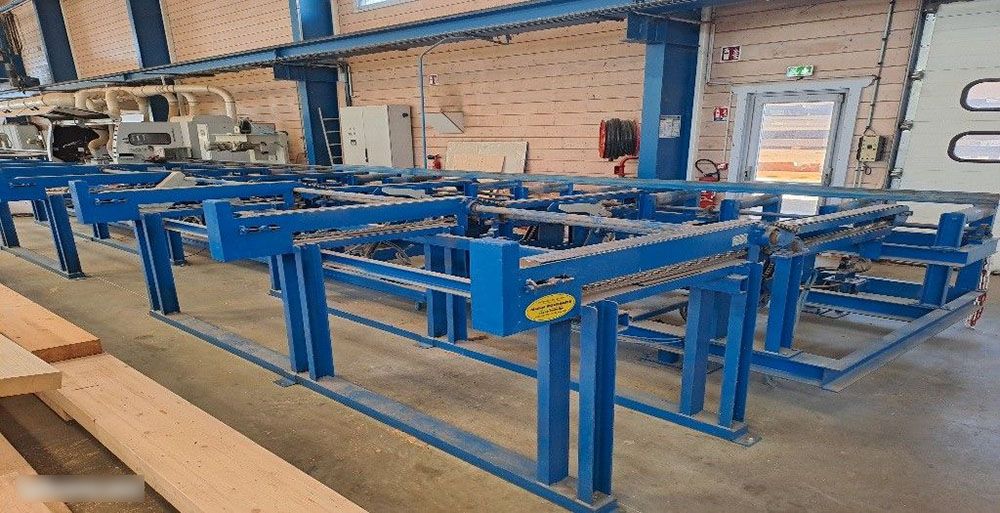

3/ Parts loader: Sawmill-style mechanism for heavy parts, conveying metal belts
Chrome-plated, chain drive, front and rear wood turner. Year 2006
Loading and unloading length 14 ml, platform width 1400 mm max.
