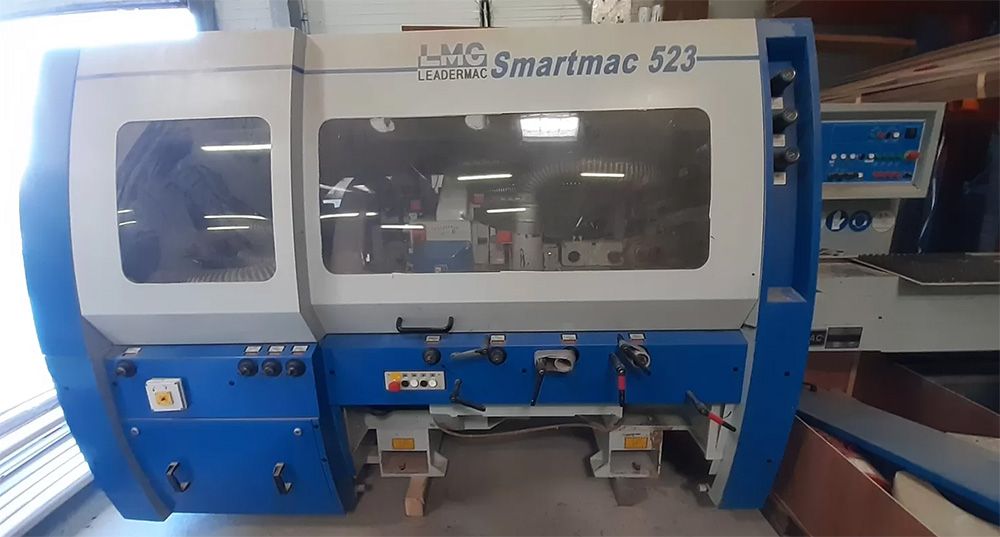

Leadermac LMC 523

4-Sided 5-Position Molding and Grinding Machine (1 Universal)
MACHINING CAPABILITIES:
- Planer and moulder on 4 sides
- Maximum section: 130 x 230 mm
- Thicknesses: 10 to 130 mm
- Widths: 15 to 230 mm
- Minimum length for a single piece: 600 mm
> 760 mm with use of the universal shaft
- Adjustable pass sizes: max 10 mm
- Shaft rotation speed: 6000 rpm

COMPONENTS OF THE CORROYING MACHINE:
- Robust, welded steel frame
- Secure, fully panoramic, soundproof enclosure on gas struts
with interior lighting
- Digital counters (Siko type) for precise manual adjustments of each operation
- Elevated control panel & operator-facing
- Cast iron entrance table (L x W): 2980 x 255 mm
Table height from the floor: 900 mm
- Side spring-loaded inlet pusher
- Digital pass-taking indicators
1) 7.5 kW planer shaft
Tool holder Ø125 x L.230 mm
2 & 3) Right & left vertical shaft 12 kW
Tool holder Ø125 x L.130 mm
4) Independently adjustable upper horizontal shaft 11 kW
Tool holder Ø125 x L.230 mm
- Adjustable pressure shoe at the outlet
5) 360° Universal Shaft 11 kW
Tree Ø 50 x L.240 mm
- Vertical presser with free-running wheel

TRAINING :
- Feed rate with variable speed drive: 6 to 24 m/min
Drive motor: 3 kW
- Helical steel inlet roller in the table
Cardan shaft drive
- 7 pneumatic pressure rollers
2 serrated steel
3 (1 retractable) + 2 rubber-coated rollers
- A smooth steel roller in the planer outfeed table

OTHER FEATURES :
- General power supply: 400V. Three-phase + ground, 50 Hz
- Installed power: 53 kW (72 hp) IN 95.6A
- Automatic star-delta start
- Brake motors
- Toothed belt for training
- Electric thickness adjustment by
Beam raising and lowering motor 0.37kW
- Shaft diameter: Ø50 mm
- Minimum working pneumatic pressure 6 bar
- Suction : 5 x Ø 120 mm
Recommended flow rate: 6100 m3/h
Speed: 20 to 28 m/sec depending on the moisture content of the machined wood
- CE marking
- Lockable contact switch, Emergency stop buttons

Overall dimensions in operating order (width x height): 3000 x 2250 mm
Dimensions: 5100 x 2000 x h.1810 mm
Weight: 4300 kg
