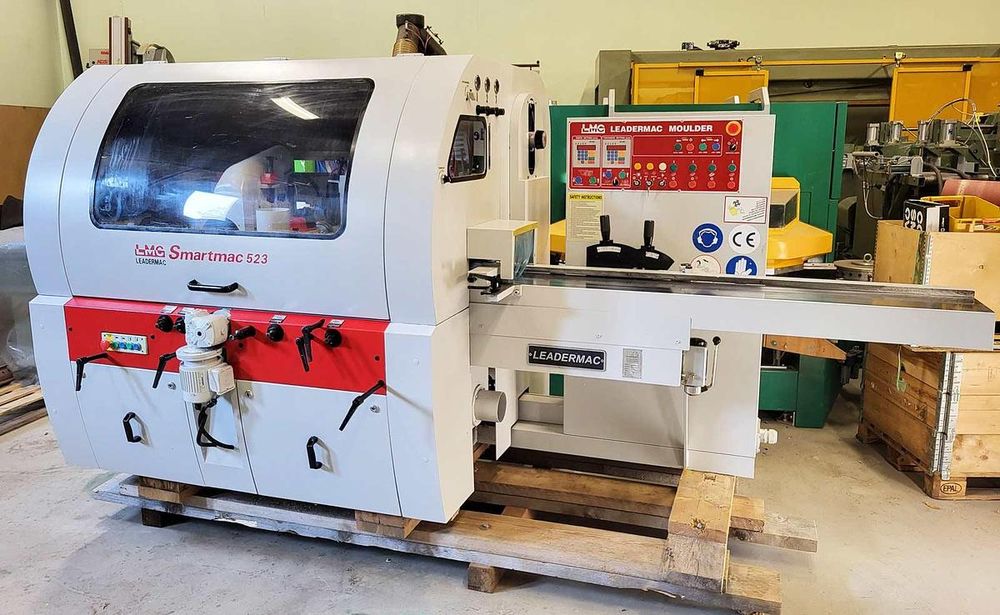

Leadermac SMARTMAC LMC 523S

4 side Planer
in good condition
Working width 230 mm
Working height 125 mm
5 Spindles, spindle diameter 40 mm
infeeding table 2000mm

Configuration:
1.bottom horizontal spindle 7.5 kW
2.right spindle 5.5 kW
3.left spindle 5.5 kW
4.top horizontal spindle 7.5 kW
5 bottom horizontal spindle 7.5 kW
steplessadjustable feed up to 24m / min
3 kW feed motor
electronic height adjustment
electronic adjustment of the left head
feed on cardan shafts
five top steel rollers
two upper rubber pulling rollers
one role in the table top pulling
pneumatic material pressure
minimum material length 400 mm
chrome tables
stub diameter 5 x 125 mm
Machine dimensions L x W x H = 370cm x 200cm x 190cm
Weight 3500 kg
CE marked
