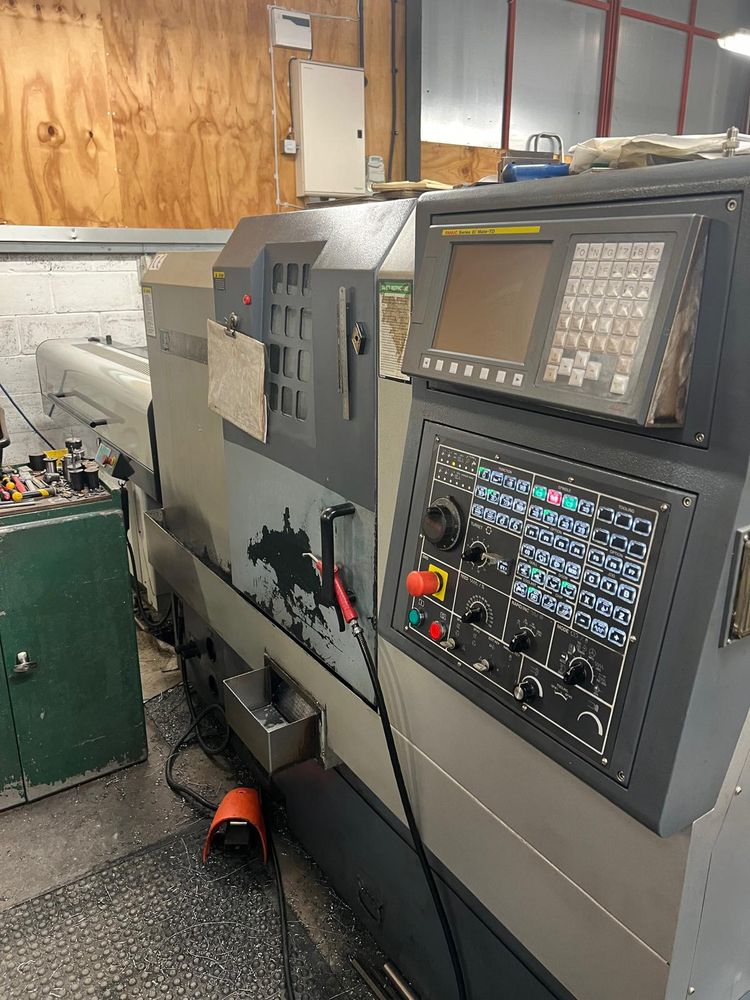

Leadwell FANUC 0i 4500 rpm T6 2 Axis

Control: FANUC 0i
X axis travel: 125 mm
Z axis travel: 460 mm
Rapid feedrates (X/Z): 20 / 24 m/min
Bar capacity: 51 mm
Swing: 450 mm
Maximum cutting diameter: 210 mm
Maximum cutting length: 420 mm
Chuck size: 165 mm
Spindle speed: 4500 rpm
Spindle motor power: 11 / 7.5 kW
Spindle nose: A2-5
Tool size: 20 x 20 mm
Turret positions: 12 station
Tailstock quill diameter: 75 mm
Tailstock taper: MT #4
Boring bar holder diameter: 32 mm
Machine dimensions: 2896 x 1580 x 1595 mm
Machine weight: 3000 kg

Equipped With
Collet chuck
Coolant system
Interlocked guards
Low voltage light
Magazine barfeed
Swarf conveyor
Tailstock
Tool setter
Tooling
