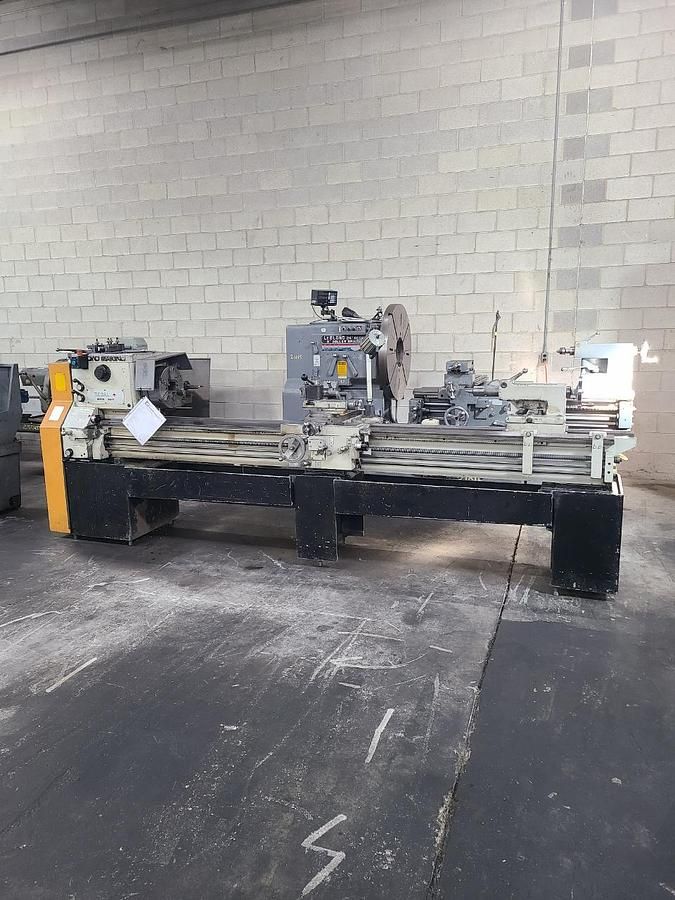

Leblond Engine Lathe 1,600 RPM 19 REGAL

Swing Over Bed and Carriage Wings: 21"
Swing Over Cross Slide: 13"
Distance Between Centers: 102"
Spindle Speeds: 40 to 1,600 RPM
Spindle Nose: D1-8
Spindle Hole: 3-1/16"
Bed Length: 12' 3"
Bed Width: 14-3/8"
Bed Depth: 11-1/2"
Carriage Length on Bed: 21"
Bridge Width: 7-7/8"
Cross Slide Travel without Taper: 11-1/4"
Cross Slide Travel with Taper: 9-5/8"
Compound Rest Travel: 4-3/8"
Feed Range: .0018 to .104 IPR
Threads Inch: 2 to 112 TPI
Threads Metric: .05 to 2.6 MM
Tailstock Spindle Diameter: 2-7/16"
Tailstock Center: 5 MT
Inch/Metric Threading
Taper Attachment
12" Pratt Burnerd 6 Jaw Chuck
Aloris Toolpost
Assorted Holders
10 HP Motor
Wired 3 Phase
60 Cycle
230 Volts
Machine Dimensions: 165" x 54" x 62"
Weight: 4,800 Lbs.
