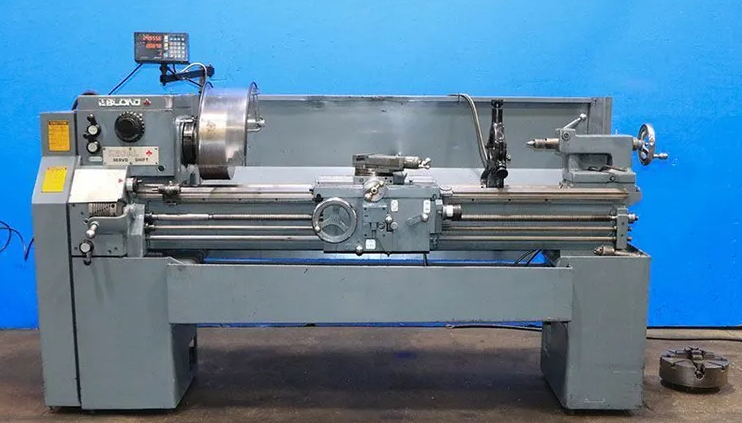

Leblond Engine Lathe 1,800 RPM 15 REGAL

LEBLOND 15 REGAL
1982

15-1/2" swing over bed
9-1/2" swing over cross slide
30" distance between centers
L1 spindle nose
2-17/64" hole thru spindle
12 spindle speeds, 45 - 1,800 RPM
Longitudinal feed range .0018" - .104" IPR
Cross feed half the longitudinal values
English threading 2 - 112 TPI
Metric threading 0.25 - 14 mm
5" tailstock spindle travel
#4 MT tailstock spindle taper
Approximate weight 3,300 lbs
Approximate dimensions 104"L x 40"W x 51"H
Inch and metric threading capability
Sony 2-axis digital readout
Taper turning attachment
12" Cushman 4-jaw chuck
12" Bison 3-jaw chuck
Steady rest
Thread dial indicator
Drill chuck for tailstock
Live center for tailstock
Micrometer carriage stop
Coolant system with removable chip pan
7.5 HP main motor
Wired for three phase 220 volt operation
Manuals included
