Leblond ENGINE LATHE 1000 RPM 19" REGAL

Ref : 2730113-3-CP
Condition : Used
Manufacturer : Leblond
Type : ENGINE LATHE
Spindle Speed : 1000 RPM
Model : 19" REGAL
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

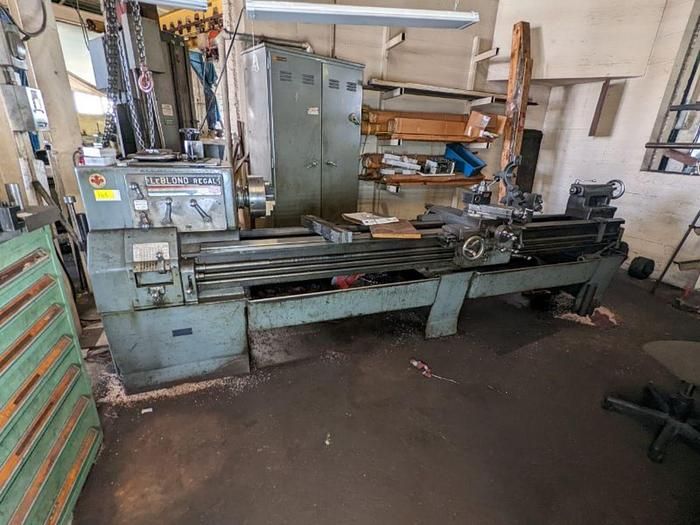

LEBLOND 19" REGAL ENGINE LATHE

Swing Over Bed Ways, Rated: 19"
Swing Over Bed Ways, Actual: 19.5"
Swing Over Cross-Slide: 12.3"
Distance Between Centers: 102"
Hole Through Spindle: 1.8"
Cross-Slide Cross-Feed Travel: 11.25"
Compound-Rest Travel: 4.375"
Tailstock Spindle Diameter: 2.44"
Tailstock Spindle Travel: 7"
Tailstock Spindle Taper: #4 MT
Spindle Speeds (12): 25 to 1000 RPM
Carriage Longitudinal Feeds (48): 0.0023 to 0.132 IPR
Thread Changes (48): 2 to 112 TPI
Main Motor Horsepower/RPM: HP / 1730 RPM
Electrical System: 220-440 V / 3 Phase / 60 Hz
Approximate Weight: 4,500 lbs
Approximate Floor Space: 15' length x 4'2" depth
Taper Attachment
10" 3-Jaw Chuck with Jaws
15" 4-Jaw Chuck with Jaws
18" Faceplate
Steady Rest
Hard Ways
Full Length Coolant-Chip Pan
