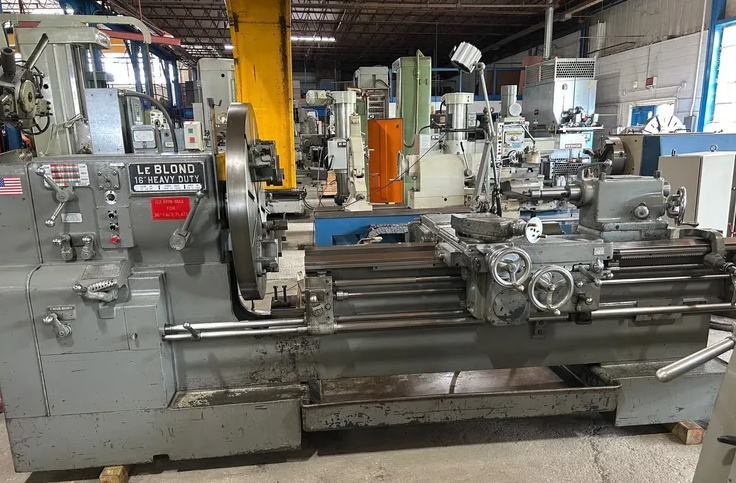

Leblond Engine Lathe 1330 RPM 16

Swing over bed and carriage wings: 20-1/2"
Swing over cross slide: 12-7/8"
Swing over gap: 46"
Distance between centers, bed closed: 72"
Distance between centers, bed opened: 120"
Spindle speeds range: 11 to 1330 RPM
Spindle nose, taper key drive, size: L-2
Spindle bore: 2-1/4"
Headstock & tailstock spindle taper: #4 Morse
Feeds, longitudinal: .0011 - .250 IPR
Threading range: 2 - 120 TPI
Tailstock spindle travel: 10"
Approximate floor space, bed closed: 12'7" x 87" x 78"
Approximate floor space, bed opened: 17' x 87" x 78"
Approximate weight: 12,500 lbs

Sliding bed for increased swing and center distance
Hardened and replaceable bed ways
Taper attachment
38" diameter faceplate with 4-jaws
Threading dial
Self-contained coolant pump
(1) live center for the tailstock
15 horsepower spindle drive motor
