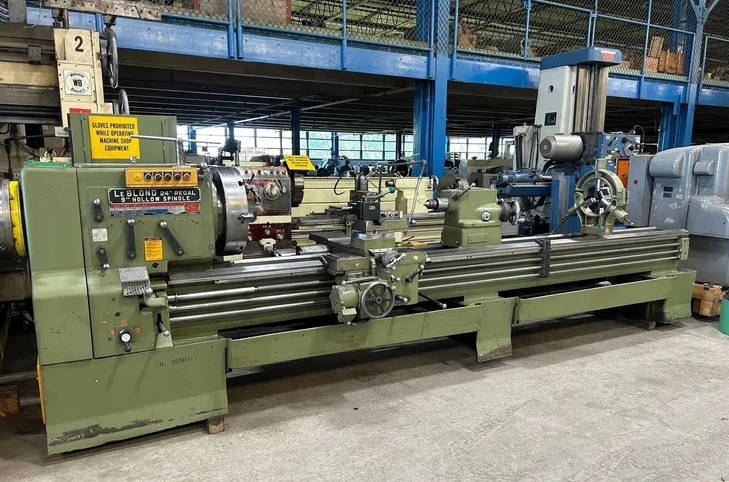

Leblond Engine Lathe 400 RPM REGAL

Swing over bed and carriage wings 26"
Swing over cross slide 18.25"
Distance between centers 144"
Spindle nose flanged 15"
Hole through spindle 9"
Width of bed 17"
Spindle speed range (12) 6–400 RPM
Feed range (48) 0.0036–0.205 IPR
Threading range English (48) 2–112 TPI
Tailstock spindle travel 7.5"
Tailstock spindle diameter 3.125"
Tailstock spindle taper #5 Morse
Approximate weight 10,500 lbs
Approximate dimensions 220"L x 60"W x 56"H

Hardened and ground bedways
Taper turning attachment
20" diameter 3-jaw chuck
16" diameter 3-jaw chuck with 9" hole through
Roller type steady rest
Quick change toolpost
Thread dial indicator
15 HP main motor
