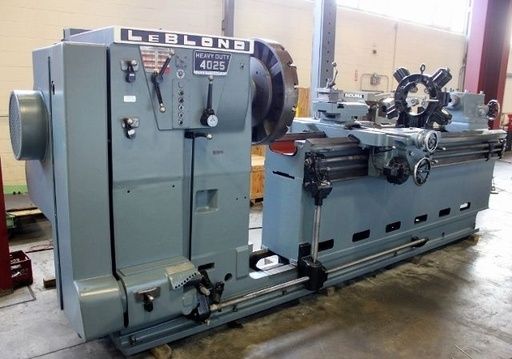

Leblond Engine Lathe 500 RPM 4025NK

LEBLOND 4025NK
1961

Swing over bed and carriage wings................... 34 1/2"
Swing over cross slide.............................. 23 1/2"
Swing over gap...................................... 130"
Distance between centers, bed closed................ 132"
Distance between centers, bed opened................ 216
(36) Spindle speeds, in 3 ranges.................... 4.5 to 500 RPM
Spindle nose, American Standard, size............... A1-11
Spindle bore........................................ 3 1/16"
Headstock and tailstock spindle center taper........ #6 MORSE
(48) Feeds, longitudinal............................ .004 TO .250 I P R
(48) Threads........................................ 3.4 TO 46 TPI
Tailstock spindle travel............................ 18"
Tailstock spindle diameter.......................... 6 1/2"

Equipped With:
Power operated sliding bed for increased swing and center distance
Hardened and ground steel bed ways on upper bed and cross slide ways
Four-directional power rapid traverse
38" Diameter four-jaw chuck with reversible jaws
25" Diameter face plate
15" Diameter capacity four-point roller-type steady rest
Square toolpost
25 H.P. spindle drive motor and electrical controls
Machine is wired for 440 volt operation.
Approximate Weight: 50,000 Lbs.
Approximate Floor Space with Bed Closed: 242" L-R x 102" F-B x 114" H
